Fairchild Semiconductor-FGA20S140P - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1400 V
Current - Collector (Ic) (Max):	40 A
Current - Collector Pulsed (Icm):	60 A
Vce(on) (Max) @ Vge, Ic:	2.4V @ 15V, 20A
Power - Max:	272 W
Switching Energy:	-
Input Type:	Standard
Gate Charge:	203.5 nC
Td (on/off) @ 25°C:	-
Test Condition:	-
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-3P-3, SC-65-3
Supplier Device Package:	TO-3PN

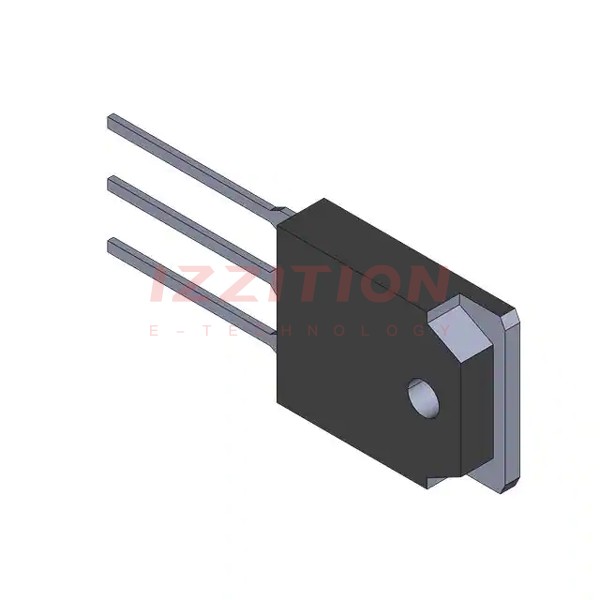

Fairchild Semiconductor FGA20S140P
