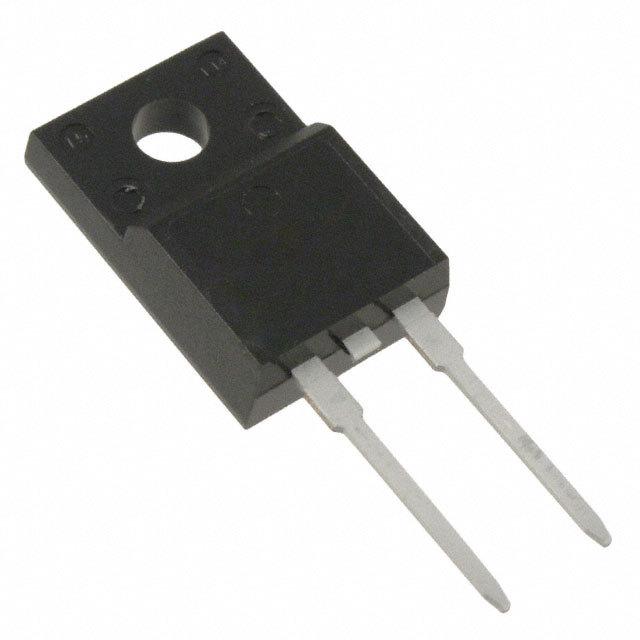

| Part Number | FFPF04U150STU | FFPF06U150STU | FFPF04F150STU |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1.5 V | 1.5 V | 1.5 V |
| Current - Average Rectified (Io) | 4A | 6A | 4A |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 4 A | 1.8 V @ 6 A | 1.5 V @ 4 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns | 150 ns | 170 ns |
| Current - Reverse Leakage @ Vr | 7 µA @ 1.5 V | 10 µA @ 1.5 V | 5 µA @ 1.5 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-2 Full Pack | TO-220-2 Full Pack | TO-220-2 Full Pack |
| Supplier Device Package | TO-220F-2L | TO-220F-2L | TO-220F-2L |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
