Fairchild Semiconductor-FFP04S60STU - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	FFP04S60STU	FFPF04S60STU	FFP08S60STU	FFP04H60STU
Manufacturer	Fairchild Semiconductor	Fairchild Semiconductor	onsemi	Fairchild Semiconductor
Product Status	Obsolete	Obsolete	Obsolete	Obsolete
Diode Type	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	600 V	600 V	600 V	600 V
Current - Average Rectified (Io)	4A	4A	8A	4A
Voltage - Forward (Vf) (Max) @ If	2.6 V @ 4 A	2.6 V @ 4 A	2.6 V @ 8 A	2.1 V @ 4 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	25 ns	25 ns	30 ns	45 ns
Current - Reverse Leakage @ Vr	100 µA @ 600 V	100 µA @ 600 V	100 µA @ 600 V	100 µA @ 600 V
Capacitance @ Vr, F	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-220-2	TO-220-2 Full Pack	TO-220-2	TO-220-2
Supplier Device Package	TO-220AC	TO-220F-2L	TO-220-2	TO-220AC
Operating Temperature - Junction	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	4A
Voltage - Forward (Vf) (Max) @ If:	2.6 V @ 4 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	25 ns
Current - Reverse Leakage @ Vr:	100 µA @ 600 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-220-2
Supplier Device Package:	TO-220AC
Operating Temperature - Junction:	-65°C ~ 150°C

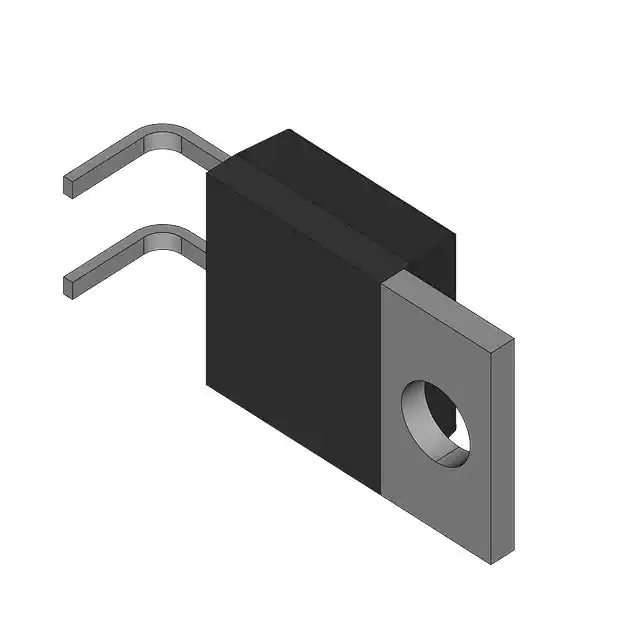

Fairchild Semiconductor FFP04S60STU
