| Part Number | FES16DT | FES16HT | FES16FT | FES16DTR | FES16JT | FES16GT | FES16AT | FES16BT | FES16CT |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V | 500 V | 300 V | 200 V | 600 V | 400 V | 50 V | 100 V | 150 V |
| Current - Average Rectified (Io) | 16A | 16A | 16A | 16A | 16A | 16A | 16A | 16A | 16A |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 8 A | 1.5 V @ 8 A | 1.3 V @ 8 A | 950 mV @ 8 A | 1.5 V @ 8 A | 1.3 V @ 8 A | 950 mV @ 8 A | 950 mV @ 8 A | 950 mV @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns | 50 ns | 50 ns | 35 ns | 50 ns | 50 ns | 35 ns | 35 ns | 35 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V | 10 µA @ 500 V | 10 µA @ 300 V | 10 µA @ 200 V | 10 µA @ 600 V | 10 µA @ 400 V | 10 µA @ 50 V | 10 µA @ 100 V | 10 µA @ 150 V |
| Capacitance @ Vr, F | 170pF @ 4V, 1MHz | 145pF @ 4V, 1MHz | 170pF @ 4V, 1MHz | 170pF @ 4V, 1MHz | 145pF @ 4V, 1MHz | 170pF @ 4V, 1MHz | 170pF @ 4V, 1MHz | 170pF @ 4V, 1MHz | 170pF @ 4V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

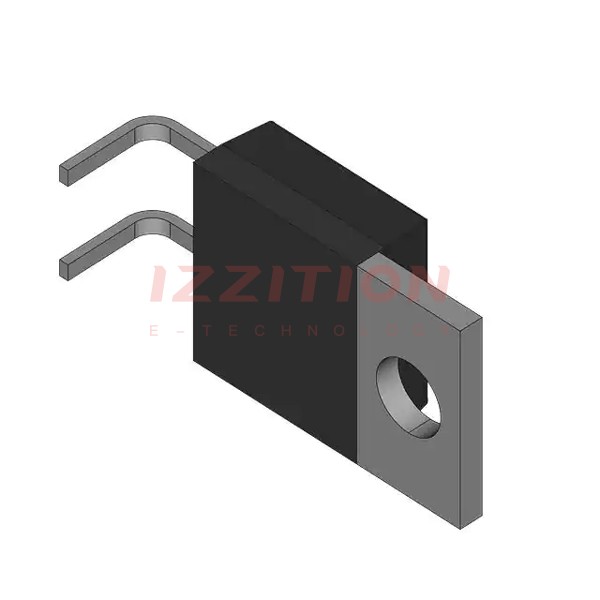

| Package / Case | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 |
| Supplier Device Package | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
