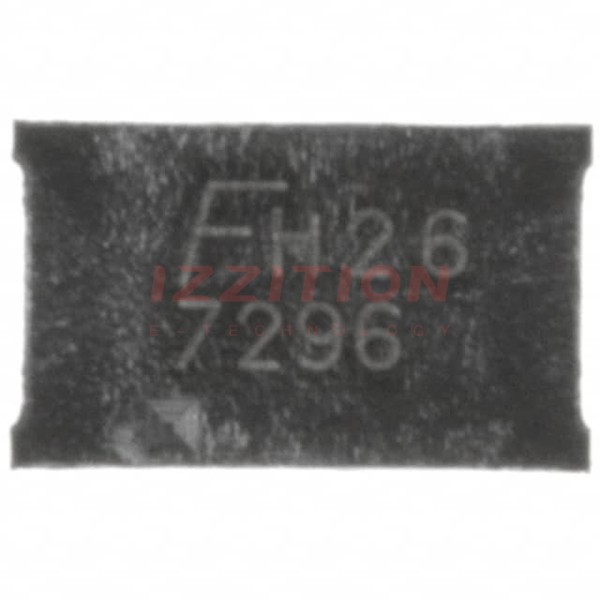

| Part Number | FDZ2553NZ | FDZ2553N |
|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 9.6A | 9.6A |
| Rds On (Max) @ Id, Vgs | 14mOhm @ 9.6A, 4.5V | 14mOhm @ 9.6A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 18nC @ 5V | 17nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1240pF @ 10V | 1299pF @ 10V |
| Power - Max | 2.1W | 2.1W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 18-WFBGA | 18-WFBGA |
| Supplier Device Package | 18-BGA (2.5x4) | 18-BGA (2.5x4) |
