| Part Number | FDZ208P | FDZ202P | FDZ204P | FDZ206P |
|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 12.5A (Ta) | 5.5A (Ta) | 4.5A (Ta) | 13A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 2.5V, 4.5V | 2.5V, 4.5V | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 10.5mOhm @ 12.5A, 10V | 45mOhm @ 5.5A, 4.5V | 45mOhm @ 4.5A, 4.5V | 9.5mOhm @ 13A, 4.5V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 35 nC @ 5 V | 13 nC @ 4.5 V | 13 nC @ 4.5 V | 53 nC @ 4.5 V |
| Vgs (Max) | ±25V | ±12V | ±12V | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 2409 pF @ 15 V | 884 pF @ 10 V | 884 pF @ 10 V | 4280 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 2.2W (Ta) | 2W (Ta) | 1.8W (Ta) | 2.2W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

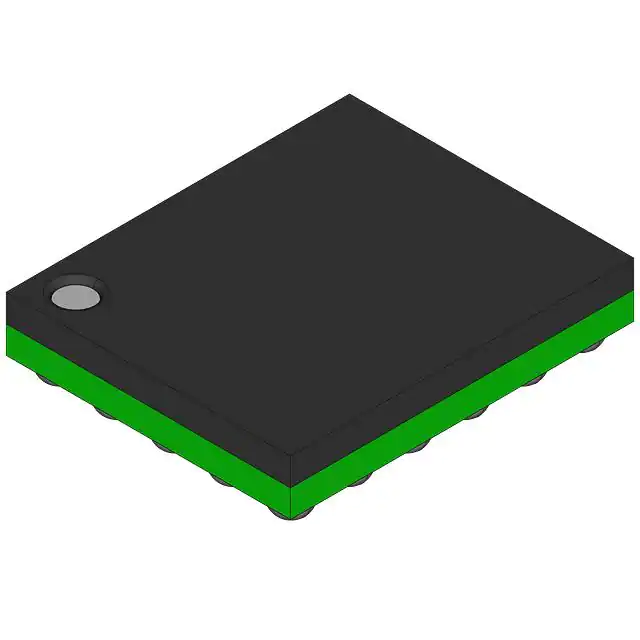

| Supplier Device Package | 30-BGA (4x3.5) | 12-BGA (2x2.5) | 9-BGA (2x2.1) | 30-BGA (4x3.5) |
| Package / Case | 30-WFBGA | 12-WFBGA | 9-WFBGA | 30-WFBGA |
