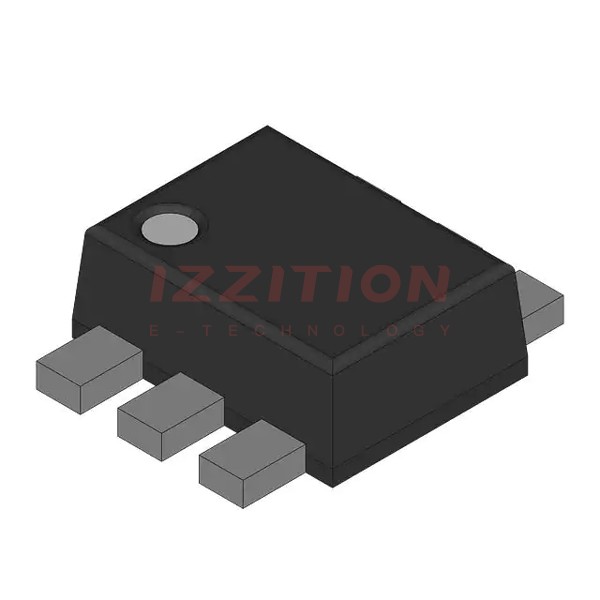

| Part Number | FDY4001CZ | FDY4000CZ |
|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Active |
| FET Type | N and P-Channel | N and P-Channel |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 200mA, 150mA | 600mA, 350mA |
| Rds On (Max) @ Id, Vgs | 5Ohm @ 200mA, 4.5V | 700mOhm @ 600mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.1nC @ 4.5V | 1.1nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 60pF @ 10V | 60pF @ 10V |
| Power - Max | 446mW | 446mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SOT-563, SOT-666 | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563F | SOT-563F |
