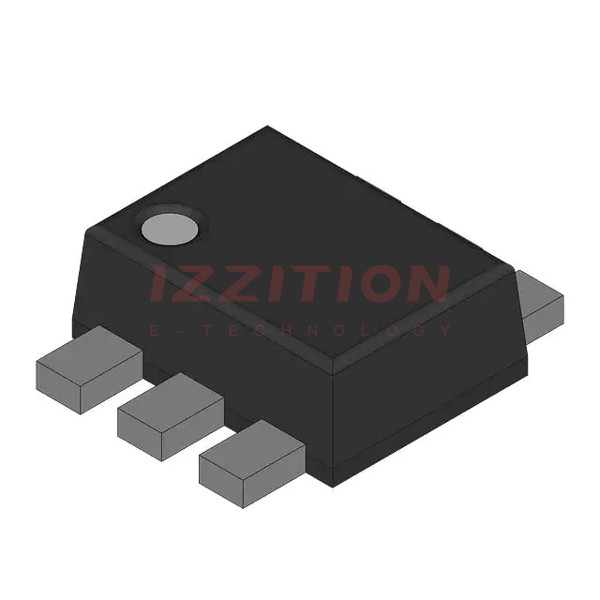

| Part Number | FDY2000PZ | FDY2001PZ |
|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Obsolete |
| FET Type | 2 P-Channel (Dual) | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 350mA | 150mA |
| Rds On (Max) @ Id, Vgs | 1.2Ohm @ 350mA, 4.5V | 8Ohm @ 150mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.4nC @ 4.5V | 1.4nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 100pF @ 10V | 100pF @ 10V |
| Power - Max | 446mW | 446mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SOT-563, SOT-666 | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563F | SOT-563F |
