Please send RFQ , we will respond immediately.

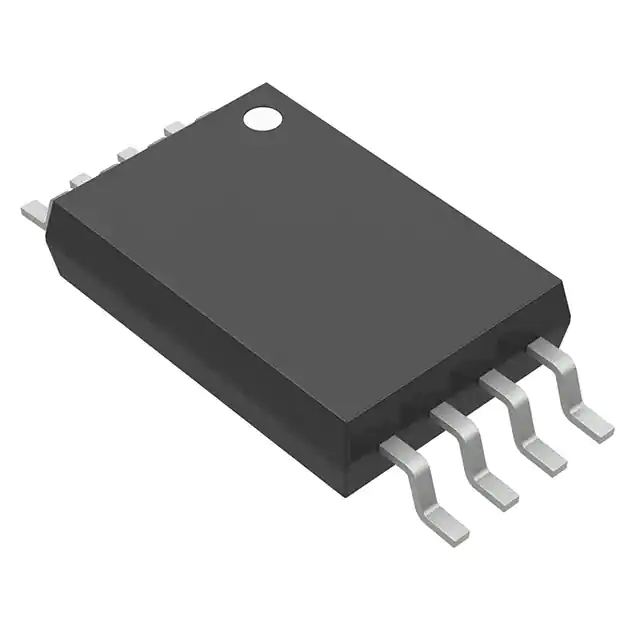

| Part Number | FDW2516NZ | FDW2510NZ | FDW2511NZ | FDW2512NZ | FDW2515NZ |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) Common Drain | 2 N-Channel (Dual) | 2 N-Channel (Dual) Common Drain |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate | Standard |
| Drain to Source Voltage (Vdss) | 20V | 20V | 20V | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5.8A | 6.4A | 7.1A | 6A | 5.8A (Ta) |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 5.8A, 4.5V | 24mOhm @ 6.4A, 4.5V | 20mOhm @ 7.1A, 4.5V | 28mOhm @ 6A, 4.5V | 28mOhm @ 5.8A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 5V | 12nC @ 4.5V | 17.3nC @ 4.5V | 12nC @ 4.5V | 12nC @ 5V |
| Input Capacitance (Ciss) (Max) @ Vds | 745pF @ 10V | 870pF @ 10V | 1000pF @ 10V | 670pF @ 10V | 745pF @ 10V |
| Power - Max | 1.1W | 1.1W | 1.6W | 1.6W | 1.1W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP | 8-TSSOP | 8-TSSOP | 8-TSSOP | 8-TSSOP |
