| Part Number | FDW2501NZ | FDW2511NZ | FDW2509NZ | FDW2503NZ | FDW2601NZ | FDW2507NZ | FDW2501N |
|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) Common Drain | 2 N-Channel (Dual) Common Drain | 2 N-Channel (Dual) | 2 N-Channel (Dual) Common Drain | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate | Standard | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | 20V | 20V | 20V | 30V | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5.5A | 7.1A | 7.1A (Ta) | 5.5A | 8.2A | 7.5A | 6A |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 5.5A, 4.5V | 20mOhm @ 7.1A, 4.5V | 20mOhm @ 7.1A, 4.5V | 20mOhm @ 5.5A, 4.5V | 15mOhm @ 8.2A, 4.5V | 19mOhm @ 7.5A, 4.5V | 18mOhm @ 6A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 4.5V | 17.3nC @ 4.5V | 19nC @ 4.5V | 17nC @ 4.5V | 30nC @ 4.5V | 28nC @ 4.5V | 17nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1286pF @ 10V | 1000pF @ 10V | 1263pF @ 10V | 1286pF @ 10V | 1840pF @ 15V | 2152pF @ 10V | 1290pF @ 10V |
| Power - Max | 600mW | 1.6W | 1.1W (Ta) | 600mW | 1.6W | 1.1W | 600mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

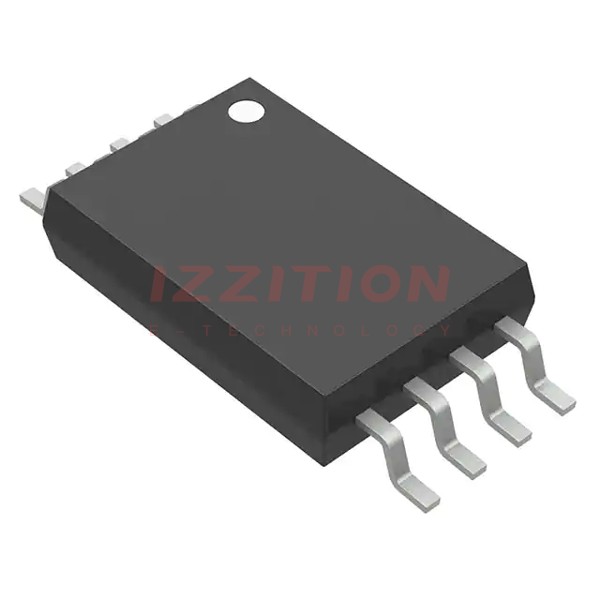

| Package / Case | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP | 8-TSSOP | 8-TSSOP | 8-TSSOP | 8-TSSOP | 8-TSSOP | 8-TSSOP |
