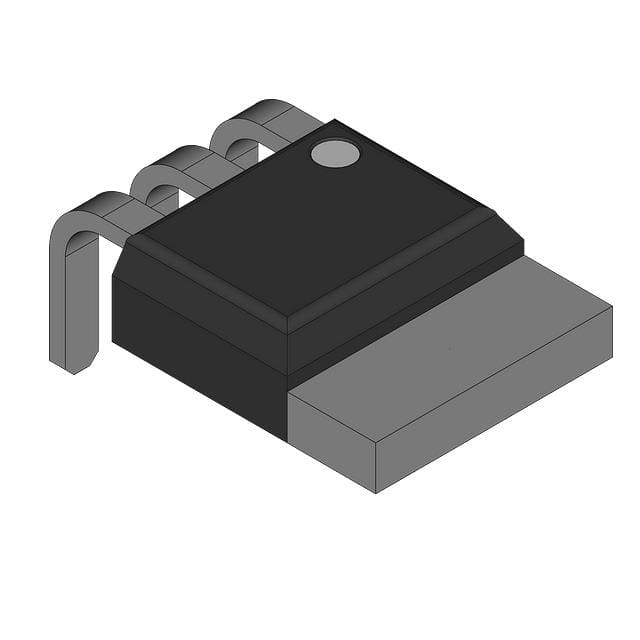

| Part Number | FDU6680 | FDU6682 | FDU6680A | FDU6688 |
|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Active | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 46A (Tc) | 75A (Ta) | 14A (Ta), 56A (Tc) | 84A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 12A, 10V | 6.2mOhm @ 17A, 10V | 9.5mOhm @ 14A, 10V | 5mOhm @ 18A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 3V @ 250µA | 3V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 5 V | 31 nC @ 5 V | 20 nC @ 5 V | 56 nC @ 5 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1230 pF @ 15 V | 2400 pF @ 15 V | 1425 pF @ 15 V | 3845 pF @ 15 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 3.3W (Ta), 56W (Tc) | 1.6W (Ta) | 1.3W (Ta), 60W (Tc) | 83W (Ta) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I-PAK | TO-251 (IPAK) | I-PAK | I-PAK |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Stub Leads, IPak | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
