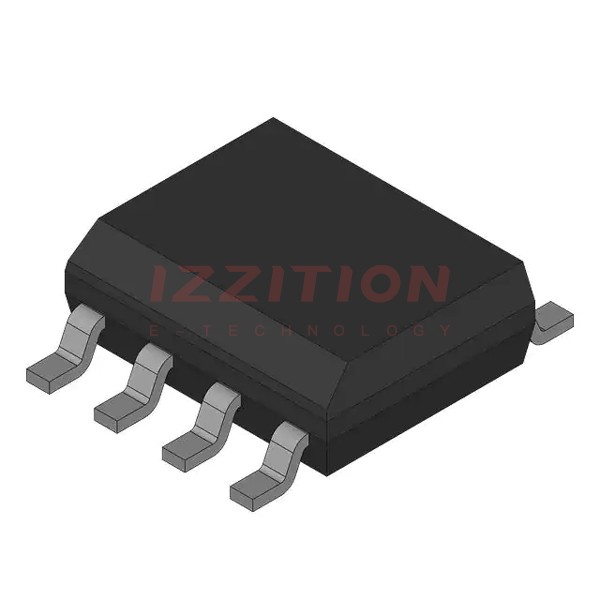

| Part Number | FDS6699S | FDS6299S | FDS6689S | FDS6690S |
|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Obsolete | Obsolete | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 21A (Ta) | 21A (Ta) | 16A (Ta) | 10A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.6mOhm @ 21A, 10V | 3.9mOhm @ 21A, 10V | 5.4mOhm @ 16A, 10V | 16mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 1mA | 3V @ 1mA | 3V @ 1mA | 3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 91 nC @ 10 V | 81 nC @ 10 V | 78 nC @ 10 V | 16 nC @ 5 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3610 pF @ 15 V | 3880 pF @ 15 V | 3290 pF @ 15 V | 1233 pF @ 15 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 2.5W (Ta) | 3W (Ta) | 2.5W (Ta) | 1W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
