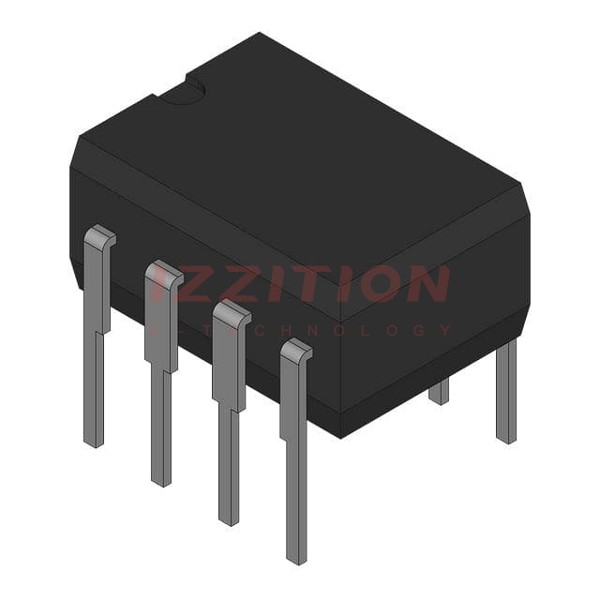

| Part Number | FDS2070N3 | FDS4070N3 | FDS2170N3 | FDS2070N7 |
|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V | 40 V | 200 V | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 4.1A (Ta) | 15.3A (Ta) | 3A (Ta) | 4.1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 10V | 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 78mOhm @ 4.1A, 10V | 7.5mOhm @ 15.3A, 10V | 128mOhm @ 3A, 10V | 78mOhm @ 4.1A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 5V @ 250µA | 4.5V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 53 nC @ 10 V | 67 nC @ 10 V | 36 nC @ 10 V | 53 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1884 pF @ 75 V | 2819 pF @ 20 V | 1292 pF @ 100 V | 1884 pF @ 75 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 3W (Ta) | 3W (Ta) | 3W (Ta) | 3W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-SO | 8-SO | 8-SO | 8-SO |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
