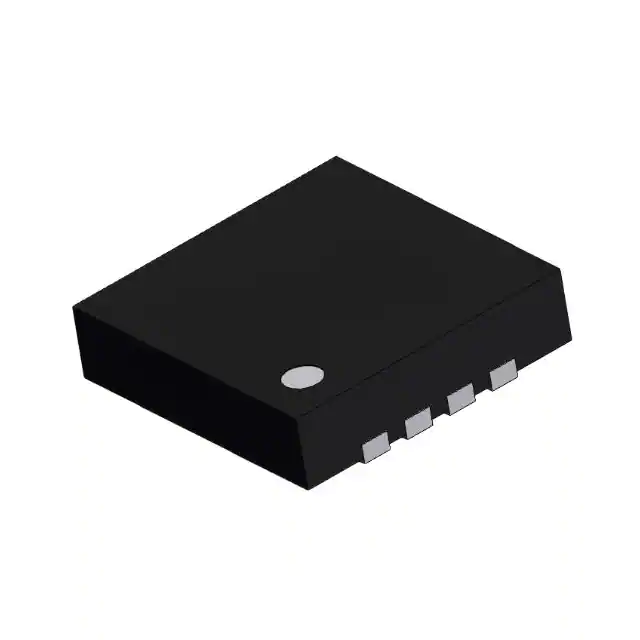

| Part Number | FDPC1012S | FDPC8012S | FDPC1002S |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | Fairchild Semiconductor |
| Product Status | Active | Active | Obsolete |
| FET Type | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) |
| FET Feature | Standard | Logic Level Gate | Standard |
| Drain to Source Voltage (Vdss) | 25V | 25V | 25V |
| Current - Continuous Drain (Id) @ 25°C | 13A (Ta), 35A (Tc), 26A (Ta), 88A (Tc) | 13A, 26A | 13A (Ta), 20A (Tc), 27A (Ta), 60A (Tc) |
| Rds On (Max) @ Id, Vgs | 7mOhm @ 12A, 4.5V, 2.2mOhm @ 23A, 4.5V | 7mOhm @ 12A, 4.5V | 6mOhm @ 13A, 10V, 1.8mOhm @ 27A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA, 2.2V @ 1mA | 2.2V @ 250µA | 2.2V @ 250µA, 2.2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 8nC @ 4.5V, 25nC @ 4.5V | 8nC @ 4.5V | 19nC @ 10V, 64nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1075pF @ 13V, 3456pF @ 13V | 1075pF @ 13V | 1240pF @13V, 4335pF @ 13V |
| Power - Max | 800mW (Ta), 900mW (Ta) | 800mW, 900mW | 1.6W (Ta), 2W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN | 8-PowerWDFN |
| Supplier Device Package | Powerclip-33 | Powerclip-33 | Powerclip-33 |
