Please send RFQ , we will respond immediately.

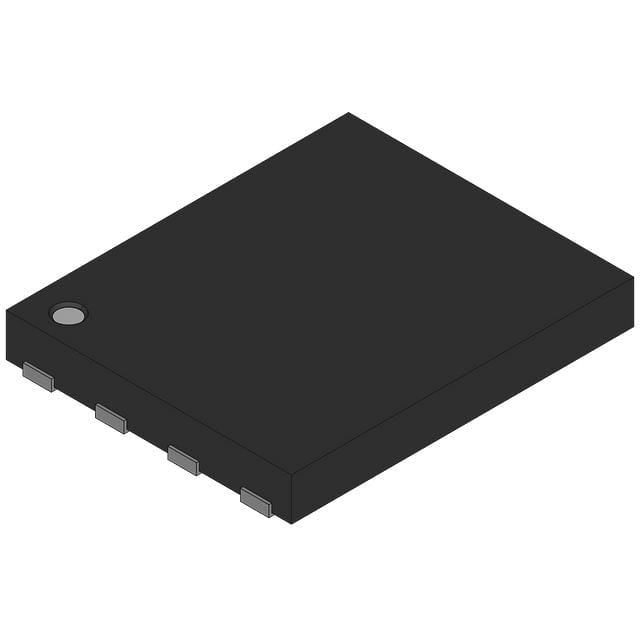

| Part Number | FDMS3602S | FDMS7602S | FDMS3604S | FDMS3606S | FDMS3622S | FDMS3600S | FDMS3602AS |
|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate | Standard | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 25V | 30V | 30V | 30V | 25V | 25V | 25V |
| Current - Continuous Drain (Id) @ 25°C | 15A, 26A | 12A, 17A | 13A, 23A | 13A, 27A | 17.5A, 34A | 15A (Ta), 30A (Tc), 30A (Ta), 40A (Tc) | 15A, 26A |
| Rds On (Max) @ Id, Vgs | 5.6mOhm @ 15A, 10V | 7.5mOhm @ 12A, 10V | 8mOhm @ 13A, 10V | 8mOhm @ 13A, 10V | 5mOhm @ 17.5A, 10V | 5.6mOhm @ 15A, 10V, 1.6mOhm @ 30A, 10V | 5.6mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 3V @ 250µA | 2.7V @ 250µA | 2.7V @ 250µA | 2V @ 250µA | 2.7V @ 250µA, 3V @ 1mA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 27nC @ 10V | 28nC @ 10V | 29nC @ 10V | 29nC @ 10V | 26nC @ 10V | 27nC @ 10V, 82nC @ 10V | 27nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1680pF @ 13V | 1750pF @ 15V | 1785pF @ 15V | 1785pF @ 15V | 1570pF @ 13V | 1680pF @13V, 5375pF @ 13V | 1770pF @ 13V |
| Power - Max | 1W | 1W | 1W | 1W | 1W | 2.2W (Ta), 2.5W (Ta) | 2.2W, 2.5W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-PowerTDFN | 8-PowerWDFN | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
| Supplier Device Package | Power56 | Power56 | Power56 | Power56 | Power56 | 8-PQFN (5x6) | 8-PQFN (5x6) |
