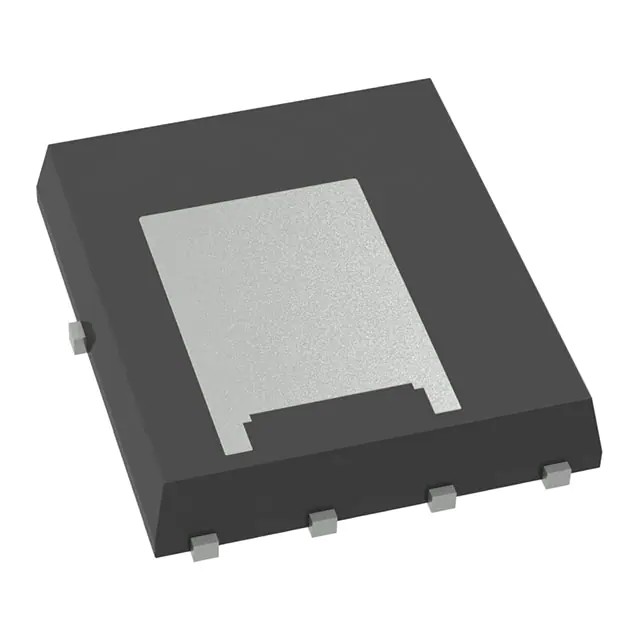

| Part Number | FDMS2508SDC | FDMS2504SDC | FDMS2506SDC |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 25 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 34A (Ta), 49A (Tc) | 42A (Ta), 49A (Tc) | 39A (Ta), 49A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.95mOhm @ 28A, 10V | 1.25mOhm @ 32A, 10V | 1.45mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 1mA | 3V @ 1mA | 3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 69 nC @ 10 V | 119 nC @ 10 V | 93 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4515 pF @ 13 V | 7770 pF @ 13 V | 5945 pF @ 13 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 3.3W (Ta), 78W (Tc) | 3.3W (Ta), 104W (Tc) | 3.3W (Ta), 89W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) | 8-PQFN (5x6) | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
