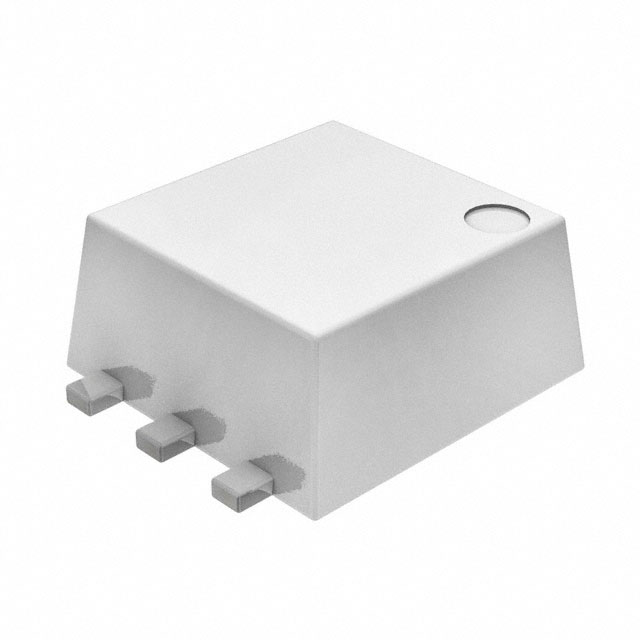

| Part Number | FDJ1028N | FDMJ1028N |
|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 3.2A | 3.2A |
| Rds On (Max) @ Id, Vgs | 90mOhm @ 3.2A, 4.5V | 90mOhm @ 3.2A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3nC @ 4.5V | 3nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 200pF @ 10V | 200pF @ 10V |
| Power - Max | 1.5W | 800mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SC-75-6 FLMP | 6-UDFN Exposed Pad |
| Supplier Device Package | SC75-6 FLMP | MicroFET 2x2 Thin |
