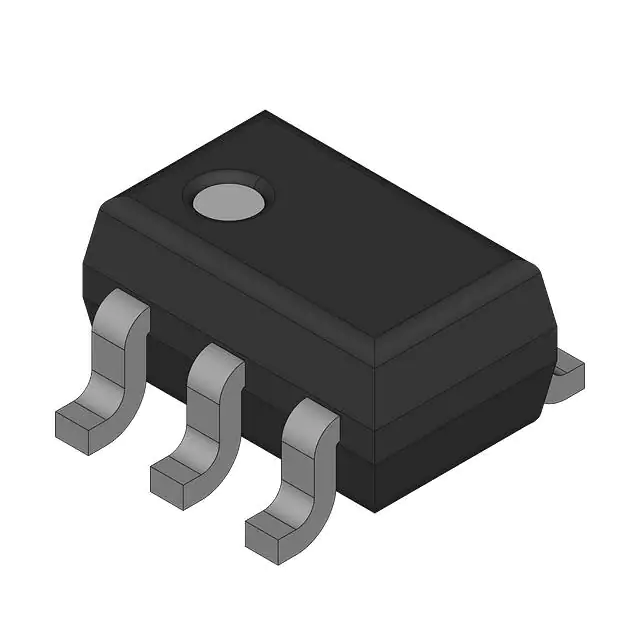

| Part Number | FDG6302P | FDG6304P | FDG6306P | FDG6308P | FDC6302P |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Active | Active | Active | Active |
| FET Type | 2 P-Channel (Dual) | 2 P-Channel (Dual) | 2 P-Channel (Dual) | 2 P-Channel (Dual) | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 25V | 25V | 20V | 20V | 25V |
| Current - Continuous Drain (Id) @ 25°C | 140mA | 410mA | 600mA | 600mA | 120mA |
| Rds On (Max) @ Id, Vgs | 10Ohm @ 140mA, 4.5V | 1.1Ohm @ 410mA, 4.5V | 420mOhm @ 600mA, 4.5V | 400mOhm @ 600mA, 4.5V | 10Ohm @ 200mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.31nC @ 4.5V | 1.5nC @ 4.5V | 2nC @ 4.5V | 2.5nC @ 4.5V | 0.31nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 12pF @ 10V | 62pF @ 10V | 114pF @ 10V | 153pF @ 10V | 11pF @ 10V |
| Power - Max | 300mW | 300mW | 300mW | 300mW | 700mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | SC-88 (SC-70-6) | SC-88 (SC-70-6) | SC-88 (SC-70-6) | SC-88 (SC-70-6) | SuperSOT™-6 |
