| Part Number | FDG314P | FDG316P | FDG312P |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Active | Active |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 30 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 650mA (Ta) | 1.6A (Ta) | 1.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.7V, 4.5V | 4.5V, 10V | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 1.1Ohm @ 500mA, 4.5V | 190mOhm @ 1.6A, 10V | 180mOhm @ 1.2A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 3V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.5 nC @ 4.5 V | 5 nC @ 10 V | 5 nC @ 4.5 V |
| Vgs (Max) | ±8V | ±20V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 63 pF @ 10 V | 165 pF @ 15 V | 330 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 750mW (Ta) | 750mW (Ta) | 750mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

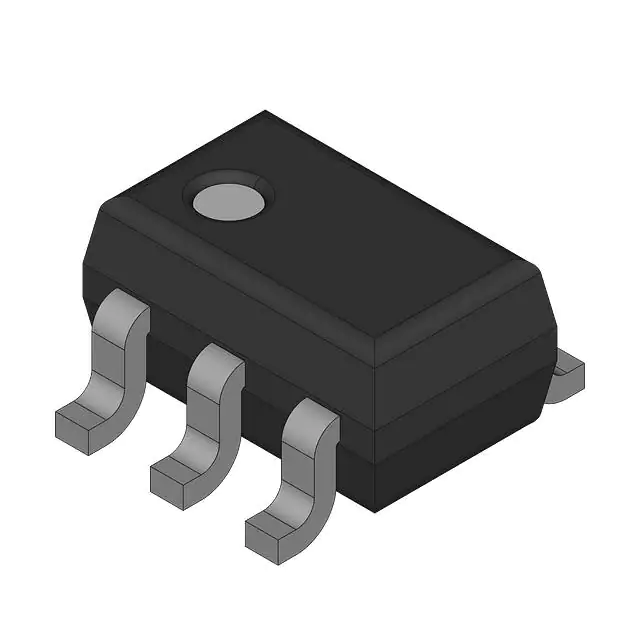

| Supplier Device Package | SC-88 (SC-70-6) | SC-88 (SC-70-6) | SC-88 (SC-70-6) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 |
