Fairchild Semiconductor-FD6M033N06 - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	60V
Current - Continuous Drain (Id) @ 25°C:	73A
Rds On (Max) @ Id, Vgs:	3.3mOhm @ 40A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	129nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	6010pF @ 25V
Power - Max:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	EPM15
Supplier Device Package:	EPM15

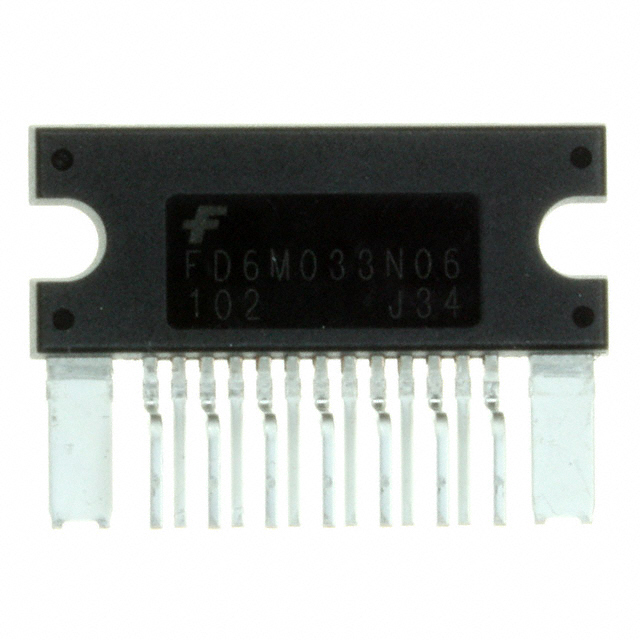

Fairchild Semiconductor FD6M033N06
