| Part Number | FAN7390N | FAN7392N | FAN7390M |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 |
| Gate Type | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 22V | 10V ~ 20V | 10V ~ 22V |
| Logic Voltage - VIL, VIH | 1.2V, 2.5V | 4.5V, 9.5V | 1.2V, 2.5V |
| Current - Peak Output (Source, Sink) | 4.5A, 4.5A | 3A, 3A | 4.5A, 4.5A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V | 600 V | 600 V |
| Rise / Fall Time (Typ) | 25ns, 20ns | 25ns, 20ns | 25ns, 20ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Surface Mount |

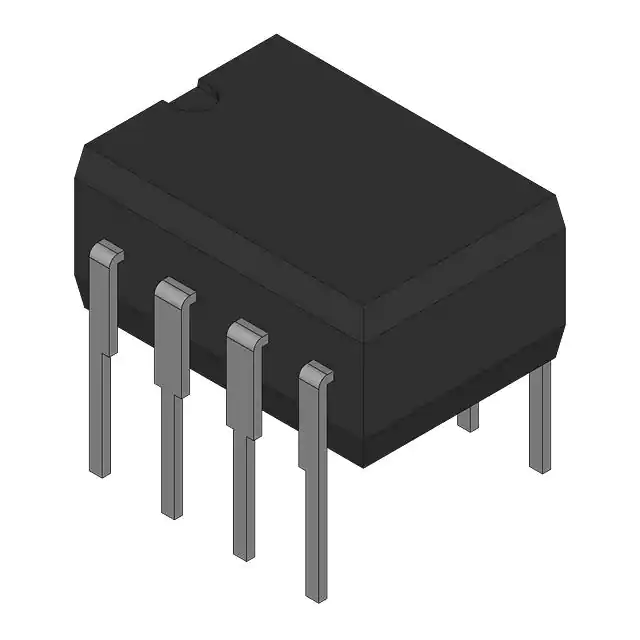

| Package / Case | 8-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-DIP | 14-MDIP | 8-SOIC |
