Please send RFQ , we will respond immediately.
| Part Number | FAN7080CMX | FAN7080MX | FAN7081CMX | FAN7083CMX | FAN7080CM |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Active | Active |
| Driven Configuration | Half-Bridge | Half-Bridge | High-Side | High-Side | Half-Bridge |
| Channel Type | Synchronous | Synchronous | Single | Single | Synchronous |
| Number of Drivers | 2 | 2 | 1 | 1 | 2 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 5.5V ~ 20V | 5.5V ~ 20V | 10V ~ 20V | 10V ~ 20V | 5.5V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.7V | 0.8V, 2.7V | 8V, 12.6V | 8V, 12.6V | 0.8V, 2.7V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA | 250mA, 500mA | 250mA, 500mA | 200mA, 400mA | 250mA, 500mA |
| Input Type | Non-Inverting | Non-Inverting | Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V | 600 V | 600 V | 600 V | 600 V |
| Rise / Fall Time (Typ) | 40ns, 25ns | 40ns, 25ns | 15ns, 10ns | 200ns, 25ns | 40ns, 25ns |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

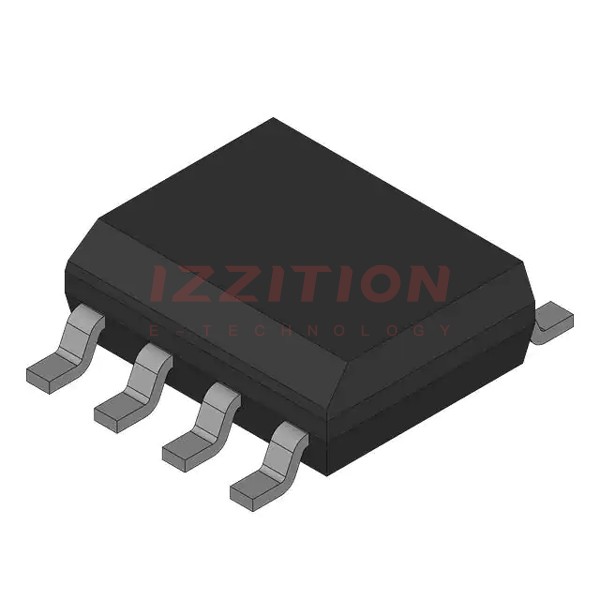

| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC |
