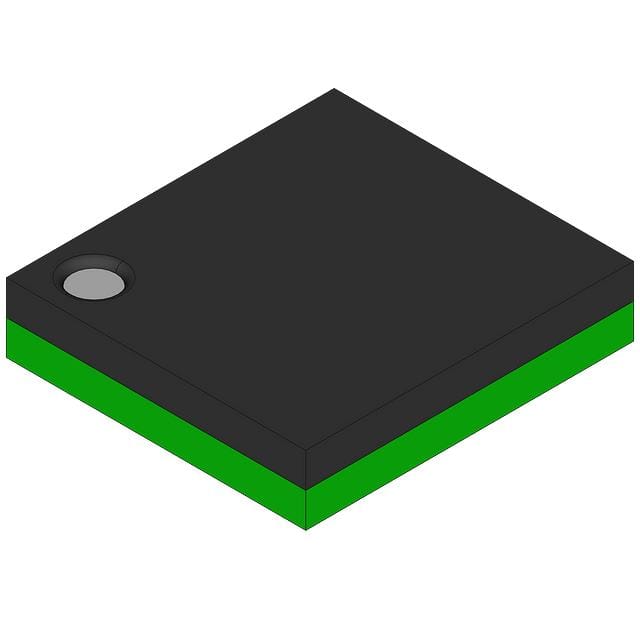

| Part Number | FAN54046UCX | FAN5404UCX | FAN54047UCX | FAN54040UCX | FAN54041UCX |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Active | Active |
| Battery Chemistry | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion/Polymer |
| Number of Cells | 1 | 1 | 1 | 1 | 1 |
| Current - Charging | Constant - Programmable | Constant - Programmable | Constant - Programmable | Constant - Programmable | Constant - Programmable |
| Programmable Features | Current, Timer, Voltage | Current, Timer, Voltage | Current, Timer, Voltage | Current, Timer, Voltage | Current, Timer, Voltage |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit |
| Charge Current - Max | 1.55A | 1.25A | 1.55A | 1.25A | 1.55A |
| Battery Pack Voltage | 4.2V | 4.5V (Max) | 4.2V | 4.5V (Max) | 4.2V |
| Voltage - Supply (Max) | 6V | 6V | 6V | 6V | 6V |
| Interface | I²C | I²C, USB | I²C | I²C, USB | I²C |
| Operating Temperature | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 25-UFBGA, WLCSP | 20-UFBGA, WLCSP | 25-UFBGA, WLCSP | 20-UFBGA, WLCSP | 25-UFBGA, WLCSP |
| Supplier Device Package | 25-WLCSP (2.4x2) | 20-WLCSP (1.96x1.56) | 25-WLCSP (2.4x2) | 20-WLCSP (1.96x1.56) | 25-WLCSP (2.4x2) |
