Please send RFQ , we will respond immediately.
| Part Number | FAN48630BUC315X | FAN48630UC315X |
|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active |
| Function | Step-Up | Step-Up |
| Output Configuration | Positive | Positive |
| Topology | Boost | Boost |
| Output Type | Programmable | Fixed |
| Number of Outputs | 1 | 1 |
| Voltage - Input (Min) | 2.35V | 2.35V |
| Voltage - Input (Max) | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 3.15V, 3.33V | 3.15V, 3.33V |
| Voltage - Output (Max) | - | - |
| Current - Output | 1.5A (Switch) | 1.5A |
| Frequency - Switching | 2.5MHz | 2.5MHz |
| Synchronous Rectifier | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

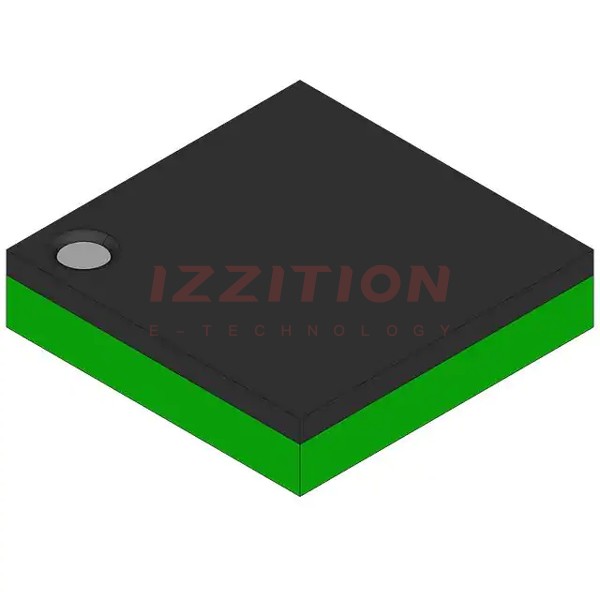

| Package / Case | 16-UFBGA, WLCSP | 16-UFBGA, WLCSP |
| Supplier Device Package | 16-WLCSP (1.78x1.78) | 16-WLCSP (1.78x1.78) |
