| Part Number | FAN3226CMPX | FAN3228CMPX | FAN3226TMPX | FAN3229CMPX | FAN3226CMX | FAN3227CMPX | FAN3223CMPX | FAN3224CMPX | FAN3225CMPX |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | onsemi | onsemi | Fairchild Semiconductor | onsemi | Fairchild Semiconductor |
| Product Status | Active | Obsolete | Active | Active | Active | Active | Active | Active | Active |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | - | - | 0.8V, 2V | - | - | - | - | - | - |
| Current - Peak Output (Source, Sink) | 3A, 3A | 3A, 3A | 3A, 3A | 3A, 3A | 3A, 3A | 3A, 3A | 5A, 5A | 5A, 5A | 5A, 5A |
| Input Type | Inverting | Inverting, Non-Inverting | Inverting | Inverting, Non-Inverting | Inverting | Non-Inverting | Inverting | Non-Inverting | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - | - | - | - | - |
| Rise / Fall Time (Typ) | 12ns, 9ns | 12ns, 9ns | 12ns, 9ns | 12ns, 9ns | 12ns, 9ns | 12ns, 9ns | 12ns, 9ns | 12ns, 9ns | 12ns, 9ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

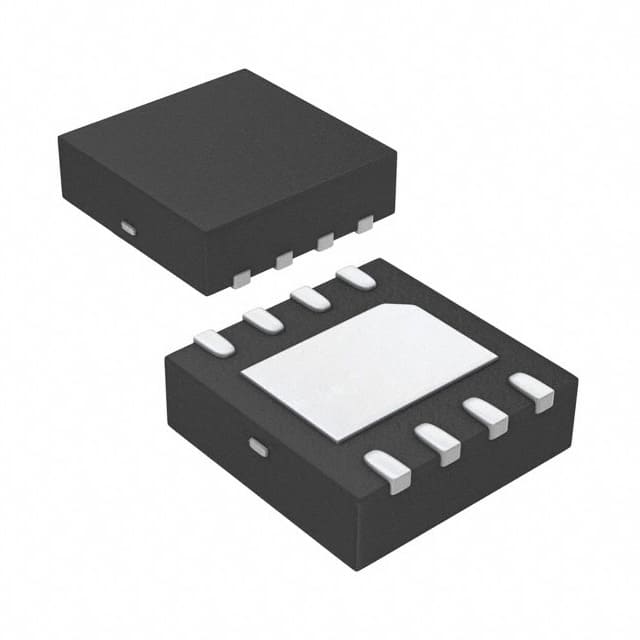

| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-SOIC (0.154", 3.90mm Width) | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-MLP (3x3) | 8-MLP (3x3) | 8-MLP (3x3) | 8-MLP (3x3) | 8-SOIC | 8-MLP (3x3) | 8-MLP (3x3) | 8-MLP (3x3) | 8-MLP (3x3) |
