Please send RFQ , we will respond immediately.

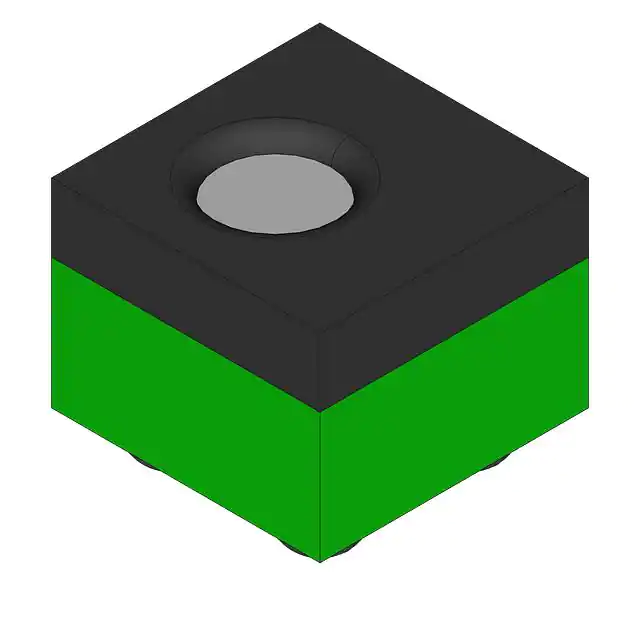

| Part Number | FAN2564UC15X | FAN2564UC18X | FAN2564UC25X | FAN2560UC15X | FAN2564UC12X | FAN2564UC13X |
|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 3.6V | 3.6V | 3.6V | 5.5V | 3.6V | 3.6V |
| Voltage - Output (Min/Fixed) | 1.5V | 1.8V | 2.5V | 1.5V | 1.2V | 1.3V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.16V @ 300mA | 0.16V @ 300mA | 0.16V @ 300mA | 0.2V @ 350mA | 0.16V @ 300mA | 0.16V @ 300mA |
| Current - Output | 300mA | 300mA | 300mA | 350mA | 300mA | 300mA |
| Current - Quiescent (Iq) | 75 µA | 75 µA | 75 µA | 11 µA | 75 µA | 75 µA |
| Current - Supply (Max) | 200 µA | 200 µA | 200 µA | 70 µA | 200 µA | 200 µA |
| PSRR | 60dB (1kHz) | 60dB (1kHz) | 60dB (1kHz) | 50dB ~ 60dB (10Hz ~ 10kHz) | 60dB (1kHz) | 60dB (1kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Temperature, Short Circuit, Soft Start | Over Temperature, Short Circuit, Soft Start | Over Temperature, Short Circuit, Soft Start | Over Temperature, Short Circuit, Soft Start, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Soft Start | Over Temperature, Short Circuit, Soft Start |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | 5-UFBGA, WLCSP | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (1.41x0.93) | 4-WLCSP (1.41x0.93) | 4-WLCSP (0.96x0.96) | 5-WLCSP (0.96x1.33) | 4-WLCSP (1.41x0.93) | 4-WLCSP (1.41x0.93) |
