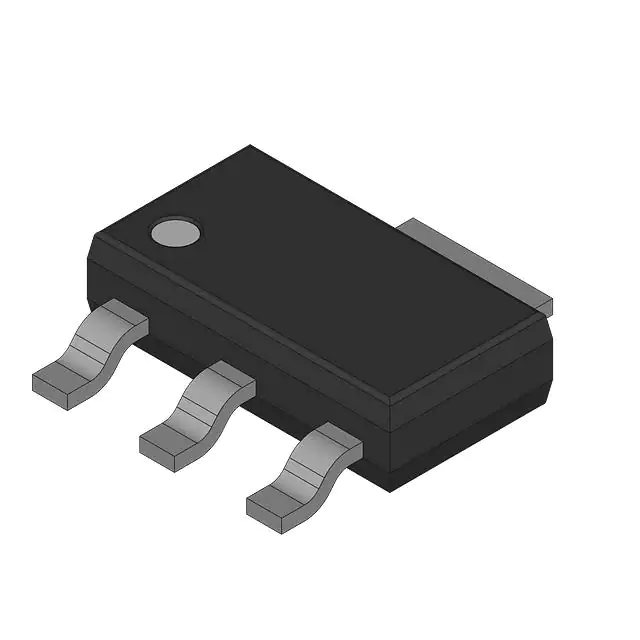

| Part Number | FAN1086S5X | FAN1086SX | FAN1086D5X | FAN1086M5X | FAN1086S25X |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Adjustable | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 7.5V | 7.5V | 7.5V | 7.5V | 7.5V |
| Voltage - Output (Min/Fixed) | 5V | 1.25V | 5V | 5V | 2.5V |
| Voltage - Output (Max) | - | 6V | - | - | - |
| Voltage Dropout (Max) | 1.5V @ 1.5A | 1.5V @ 1.5A | 1.5V @ 1.5A | 1.5V @ 1.5A | 1.5V @ 1.5A |
| Current - Output | 1.5A | 1.5A | 1.5A | 1.5A | 1.5A |
| Current - Quiescent (Iq) | 13 mA | - | 13 mA | - | - |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | 72dB (120Hz) | 72dB (120Hz) | 72dB (120Hz) | 72dB (120Hz) | 72dB (120Hz) |
| Control Features | - | - | - | - | - |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C (TJ) | 25°C ~ 125°C | 0°C ~ 125°C (TJ) | 25°C ~ 125°C | 25°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-261-4, TO-261AA | TO-261-4, TO-261AA | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-4 | SOT-223-4 | TO-252, (D-Pak) | TO-263-3 | SOT-223-4 |
