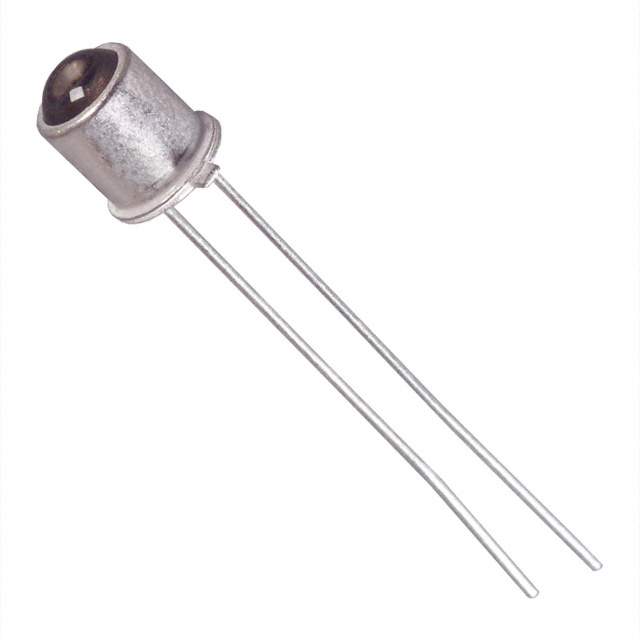

| Part Number | F5D1 | F5D1B | F5D3 | F5D2 | F5E1 |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 100mA | 100mA | 100mA | 100mA | 100mA |
| Radiant Intensity (Ie) Min @ If | - | - | - | - | - |
| Wavelength | 880nm | 880nm | 880nm | 880nm | 880nm |
| Voltage - Forward (Vf) (Typ) | 1.7V (Max) | 1.7V (Max) | 1.7V (Max) | 1.7V | 1.7V |
| Viewing Angle | 16° | 16° | 16° | 16° | 80° |
| Orientation | Top View | Top View | Top View | Top View | Top View |
| Operating Temperature | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C (TA) | -65°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-46-2 Lens Top Metal Can | TO-46-2 Lens Top Metal Can | TO-46-2 Lens Top Metal Can | TO-46-2 Lens Top Metal Can | TO-46-2 Metal Can |
