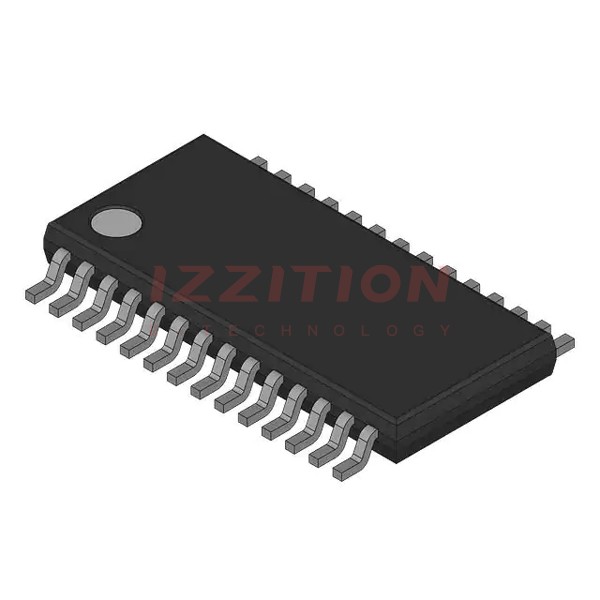

| Part Number | EL7564CREZ | EL7563CREZ | EL7564CRE |
|---|---|---|---|
| Manufacturer | Intersil | Elantec | Renesas Electronics America Inc |
| Product Status | Active | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 3V | 4.5V |
| Voltage - Input (Max) | 5.5V | 3.6V | 5.5V |
| Voltage - Output (Min/Fixed) | 1V | 1V | 1V |
| Voltage - Output (Max) | 3.8V | 2.5V | 3.8V |
| Current - Output | 4A | 4A | 4A |
| Frequency - Switching | Up to 1MHz | 200kHz ~ 1MHz | 200kHz ~ 1MHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-HTSSOP | 28-HTSSOP | 28-HTSSOP |
