Please send RFQ , we will respond immediately.

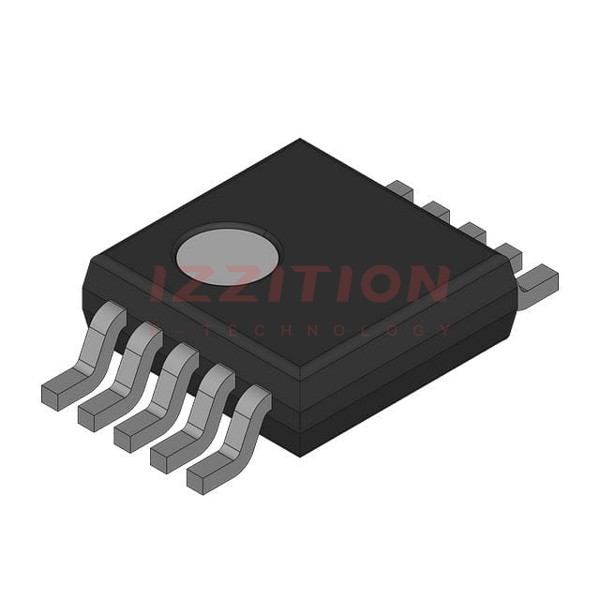

| Part Number | EL7535IYZ | EL7536IYZ | EL7515IYZ | EL7530IYZ | EL7531IYZ | EL7532IYZ | EL7534IYZ | EL7535IY |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil | Intersil |
| Product Status | Active | Active | Obsolete | Active | Active | Active | Active | Obsolete |
| Function | Step-Down | Step-Down | Step-Up | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Boost | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.5V | 2.5V | 1.8V | 2.5V | 2.5V | 2.5V | 2.5V | 2.5V |
| Voltage - Input (Max) | 6V | 5.5V | 13.2V | 5.5V | 5.5V | 5.5V | 5.5V | 6V |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | 4.5V | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V |
| Voltage - Output (Max) | 5.5V | 5.5V | 17V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Current - Output | 350mA | 1A | 1A (Switch) | 600mA | 1A | 2A | 600mA | 350mA |
| Frequency - Switching | 1.4MHz | 1.5MHz | 670kHz ~ 1.2MHz | 1.4MHz | 1.4MHz | 1.5MHz | 1.5MHz | 1.4MHz |
| Synchronous Rectifier | Yes | Yes | No | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP | 10-MSOP | 10-MSOP | 10-MSOP | 10-MSOP | 10-MSOP | 10-MSOP | 10-MSOP |
