| Part Number | EL5444CN | EL5444CU | EL5444CS |
|---|---|---|---|
| Manufacturer | Intersil | Elantec | Intersil |
| Product Status | Obsolete | Active | Obsolete |
| Amplifier Type | Voltage Feedback | Voltage Feedback | Voltage Feedback |
| Number of Circuits | 4 | 4 | 4 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 200V/µs | 200V/µs | 200V/µs |
| Gain Bandwidth Product | 60 MHz | 60 MHz | 60 MHz |
| -3db Bandwidth | 100 MHz | 100 MHz | 100 MHz |
| Current - Input Bias | 2 nA | 2 nA | 2 nA |
| Voltage - Input Offset | 25 mV | 25 mV | 25 mV |
| Current - Supply | 7mA (x4 Channels) | 7mA (x4 Channels) | 7mA (x4 Channels) |
| Current - Output / Channel | 120 mA | 120 mA | 120 mA |
| Voltage - Supply Span (Min) | 4.75 V | 4.75 V | 4.75 V |
| Voltage - Supply Span (Max) | 5.25 V | 5.25 V | 5.25 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Surface Mount | Surface Mount |

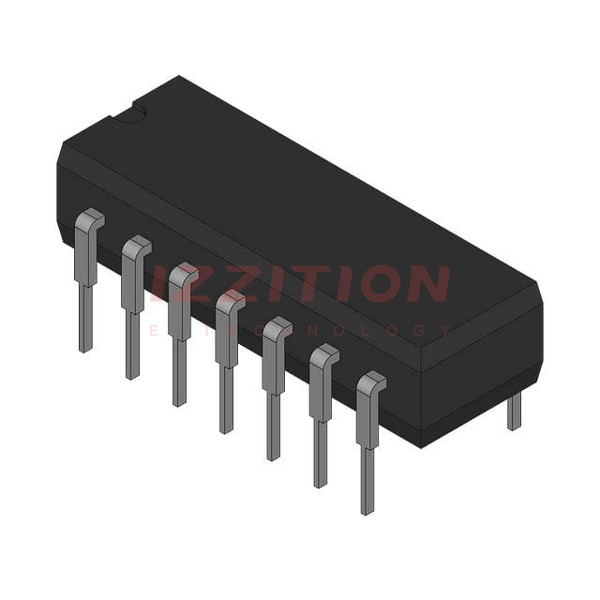

| Package / Case | 14-DIP (0.300", 7.62mm) | 16-SSOP (0.154", 3.90mm Width) | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-PDIP | 16-QSOP | 14-SOIC |
