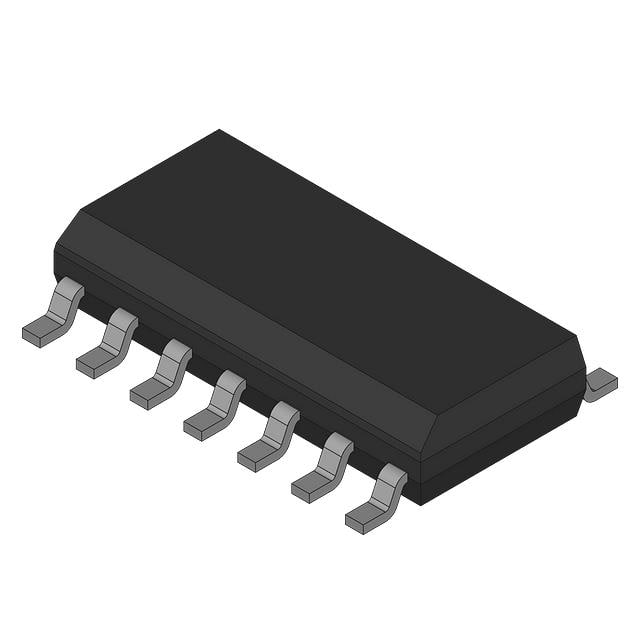

| Part Number | DM74S05M | DM74S05MX | DM74S05N | DM74S04M |
|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor |
| Product Status | Active | Active | Obsolete | Active |
| Logic Type | Inverter | Inverter | Inverter | Inverter |
| Number of Circuits | 6 | 6 | 6 | 6 |
| Number of Inputs | 1 | 1 | 1 | 1 |
| Features | Open Collector | Open Collector | Open Collector | - |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | 54 mA | 54 mA | - | 54 mA |
| Current - Output High, Low | 250µA, 20mA | 250µA, 20mA | -, 20mA | 1mA, 20mA |
| Logic Level - Low | 0.8V | 0.8V | 0.8V | 0.8V |
| Logic Level - High | 2V | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 11ns @ 5V, 50pF | 11ns @ 5V, 50pF | 11ns @ 5V, 50pF | 8ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Supplier Device Package | 14-SOIC | 14-SOIC | 14-MDIP | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) | 14-SOIC (0.154", 3.90mm Width) | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) |
