Please send RFQ , we will respond immediately.

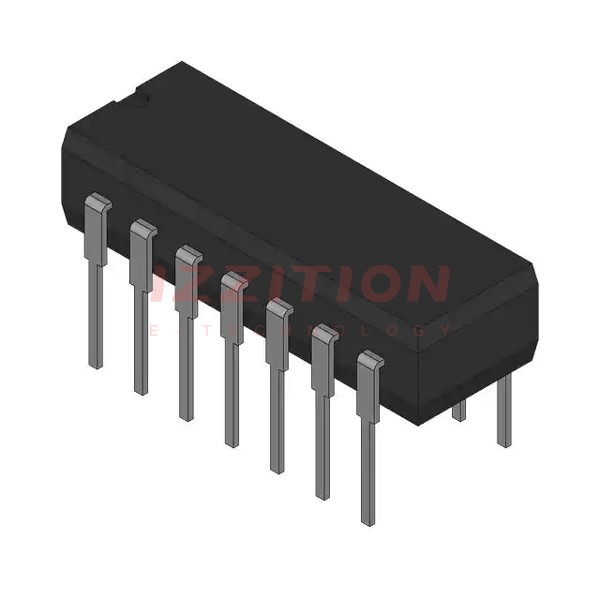

| Part Number | DM74AS10N | DM74AS30N | DM74LS10N | DM74S10N | DM74AS20N | DM74AS00N | DM74AS10M |
|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi | onsemi | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | NAND Gate | NAND Gate | NAND Gate | NAND Gate | NAND Gate | NAND Gate | NAND Gate |
| Number of Circuits | 3 | 1 | 3 | 3 | 2 | 4 | 3 |
| Number of Inputs | 3 | 8 | 3 | 3 | 4 | 2 | 3 |
| Features | - | - | - | - | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - | - | - | - | - | - | - |
| Current - Output High, Low | 2mA, 20mA | 2mA, 20mA | 400µA, 8mA | 1mA, 20mA | 2mA, 20mA | 2mA, 20mA | 2mA, 20mA |
| Logic Level - Low | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V |
| Logic Level - High | 2V | 2V | 2V | 2V | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 4.5ns @ 5V, 50pF | 5ns @ 5V, 50pF | 15ns @ 5V, 50pF | 8ns @ 5V, 50pF | 4.5ns @ 5V, 50pF | 4.5ns @ 5V, 50pF | 4.5ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Supplier Device Package | 14-DIP | 14-DIP | 14-MDIP | 14-MDIP | 14-MDIP | 14-DIP | 14-SOIC |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) |
