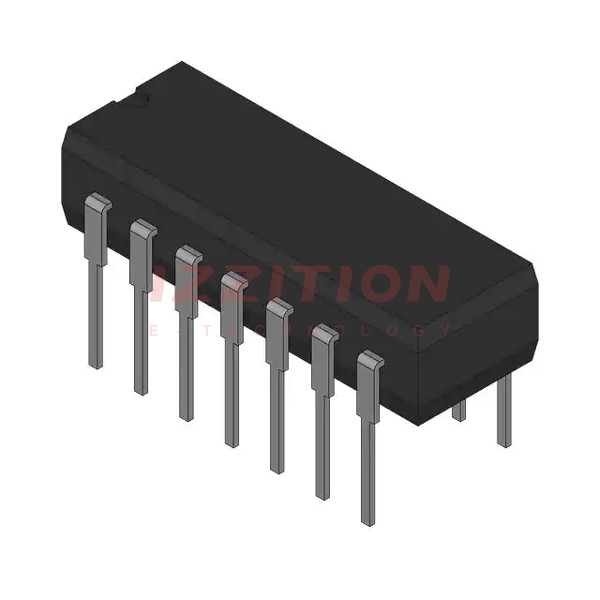

| Part Number | DM74ALS30AN | DM74ALS38AN | DM74ALS37AN | DM74ALS00AN | DM74ALS10AN | DM74ALS20AN | DM74ALS30AM |
|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | NAND Gate | NAND Gate | NAND Gate | NAND Gate | NAND Gate | NAND Gate | NAND Gate |
| Number of Circuits | 1 | 4 | 4 | 4 | 3 | 2 | 1 |
| Number of Inputs | 8 | 2 | 2 | 2 | 3 | 4 | 8 |
| Features | - | Open Collector | - | - | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - | - | - | - | - | - | - |
| Current - Output High, Low | 400µA, 8mA | -, 24mA | 2.6mA, 24mA | 400µA, 8mA | 400µA, 8mA | 400µA, 8mA | 400µA, 8mA |
| Logic Level - Low | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V |
| Logic Level - High | 2V | 2V | 2V | 2V | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 12ns @ 5V, 50pF | 33ns @ 5V, 50pF | 8ns @ 5V, 50pF | 11ns @ 5V, 50pF | 11ns @ 5V, 50pF | 11ns @ 5V, 50pF | 12ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Supplier Device Package | 14-DIP | 14-DIP | 14-DIP | 14-DIP | 14-DIP | 14-DIP | 14-SOIC |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) |
