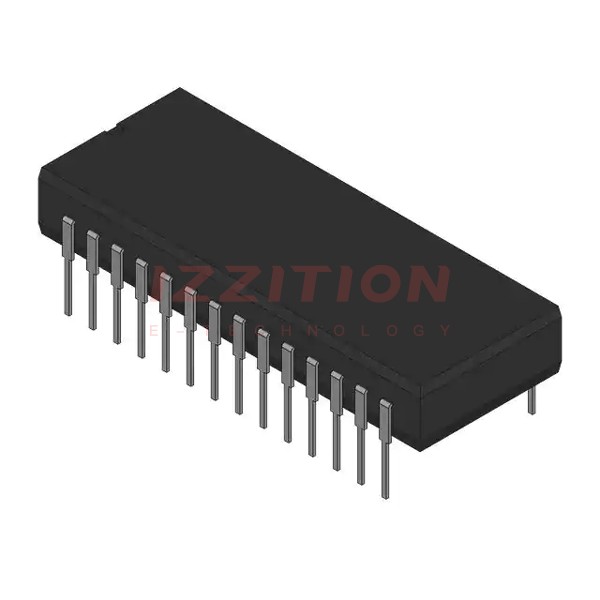

| Part Number | DG407DY | DG407DYZ | DG409DY | DG408DY | DG407EY | DG405DY | DG406DY | DG407DJ | DG407DN | DG407DW |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Intersil | Renesas Electronics America Inc | Intersil | Intersil | Harris Corporation | Intersil | Intersil | Harris Corporation | Analog Devices Inc./Maxim Integrated | Vishay Siliconix |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Active | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Switch Circuit | - | - | SP4T | - | 8PST | SP4T | - | - | - | - |
| Multiplexer/Demultiplexer Circuit | 8:1 | 8:1 | 4:1 | 8:1 | 8:1 | 4:1 | 16:1 | 8:1 | 8:1 | 8:1 |
| Number of Circuits | 2 | 2 | 2 | 1 | 2 | 2 | 1 | 2 | 2 | 2 |
| On-State Resistance (Max) | 100Ohm | 100Ohm | 100Ohm | 100Ohm | 100Ohm | 45Ohm | 100Ohm | 100Ohm | 100Ohm | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm | 5Ohm | 15Ohm (Max) | 15Ohm (Max) | 5Ohm | 3Ohm | 5Ohm | 5Ohm | 1.5Ohm | 5Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 34V | 5V ~ 34V | 5V ~ 36V | 12V | 44V | 5V ~ 34V, ±5V ~ 17V | 5V ~ 34V | 15V | 5V ~ 30V | 12V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V | ±5V ~ 20V | ±5V ~ 20V | ±5V ~ 20V | 44V | 5V ~ 34V, ±5V ~ 17V | ±5V ~ 20V | ±15V | ±4.5V ~ 20V | ±5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 200ns, 150ns | 200ns, 150ns | 150ns, 150ns | 150ns, 150ns | 200ns, 150ns | 150ns, 100ns | 200ns, 150ns | 200ns, 150ns | 200ns, 150ns | 200ns, 150ns |
| -3db Bandwidth | - | - | - | - | - | - | - | - | - | - |
| Charge Injection | 40pC | 40pC | 20pC | 20pC | 40pC | 60pC | 40pC | 40pC | 2pC | 15pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 80pF | 8pF, 80pF | 14pF, 25pF | 3pF, 26pF | 8pF, 80pF | 12pF, 12pF | 8pF, 160pF | 8pF, 80pF | 8pF, 65pF | 8pF, 65pF |
| Current - Leakage (IS(off)) (Max) | 500pA | 500pA | 500pA | 500pA | 500pA | 500pA | 500pA | 500pA | 500pA | 500pA |
| Crosstalk | - | - | - | - | - | -90dB @ 1MHz | - | - | -92dB @ 100kHz | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 28-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.154", 3.90mm Width) | 28-SOIC (0.295", 7.50mm Width) | 28-DIP (0.600", 15.24mm) | 28-LCC (J-Lead) | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC | 28-SOIC | 16-SOIC | 16-SOIC | 28-SOIC | 16-SOIC | 28-SOIC | 28-PDIP | 28-PLCC (11.51x11.51) | 28-SOIC |
