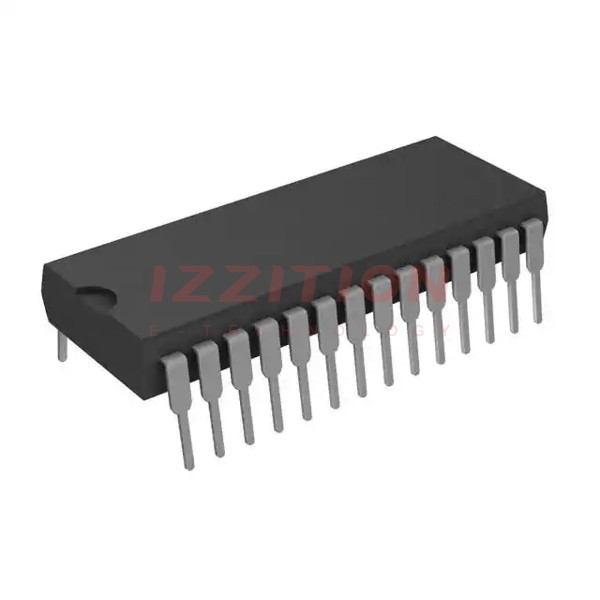

| Part Number | DG406DJZ | DG407DJZ | DG406DYZ | DG408DJZ | DG406DJ | DG406DJ+ |
|---|---|---|---|---|---|---|
| Manufacturer | Intersil | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Active | Active | Obsolete | Active |
| Switch Circuit | - | - | - | - | - | - |
| Multiplexer/Demultiplexer Circuit | 16:1 | 8:1 | 16:1 | 8:1 | 16:1 | 16:1 |
| Number of Circuits | 1 | 2 | 1 | 1 | 1 | 1 |
| On-State Resistance (Max) | 100Ohm | 100Ohm | 100Ohm | 100Ohm | 100Ohm | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm | 5Ohm | 5Ohm | 15Ohm (Max) | 5Ohm | 1.5Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 34V | 5V ~ 34V | 5V ~ 34V | 5V ~ 34V | 12V | 5V ~ 30V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V | ±5V ~ 20V | ±5V ~ 20V | ±5V ~ 20V | ±5V ~ 20V | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 200ns, 150ns | 200ns, 150ns | 200ns, 150ns | 150ns, 150ns | 200ns, 150ns | 200ns, 150ns |
| -3db Bandwidth | - | - | - | - | - | - |
| Charge Injection | 40pC | 40pC | 40pC | 20pC | 15pC | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 160pF | 8pF, 80pF | 8pF, 160pF | 3pF, 26pF | 8pF, 130pF | 8pF, 130pF |
| Current - Leakage (IS(off)) (Max) | 500pA | 500pA | 500pA | 500pA | 500pA | 500pA |
| Crosstalk | - | - | - | - | - | -92dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole |
| Package / Case | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 28-SOIC (0.295", 7.50mm Width) | 16-DIP (0.300", 7.62mm) | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-PDIP | 28-PDIP | 28-SOIC | 16-PDIP | 28-PDIP | 28-PDIP |
