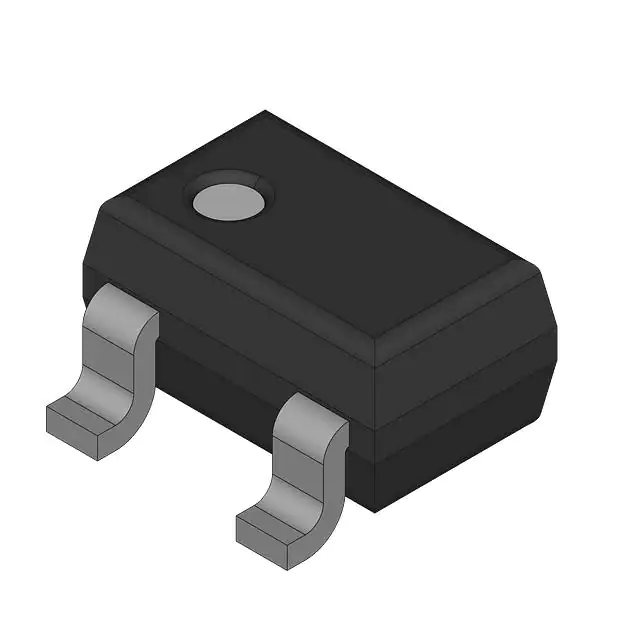

| Part Number | DCG010-TL-E | DCJ010-TL-E | DCF010-TL-E |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Series Connection | 1 Pair Common Anode |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 80 V | 20 V | 80 V |
| Current - Average Rectified (Io) (per Diode) | 100mA | 100mA | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA | 1 V @ 10 mA | 1.2 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns | - | 4 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 80 V | 100 nA @ 15 V | 500 nA @ 80 V |
| Operating Temperature - Junction | 125°C (Max) | 125°C (Max) | 125°C (Max) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-70, SOT-323 | SC-70, SOT-323 | 3-SMD, Gull Wing |
| Supplier Device Package | MCP | 3-MCP | 3-MCP |
