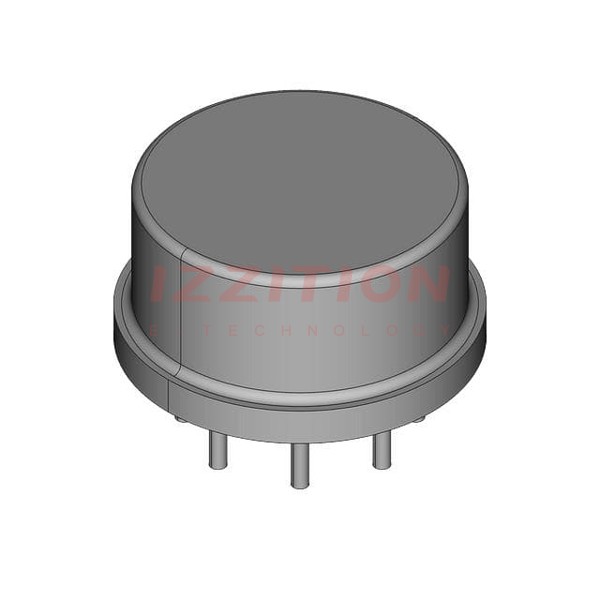

| Part Number | CA3130AT | CA3130T | CA3140AT | CA3130AE | CA3130AM |
|---|---|---|---|---|---|
| Manufacturer | Intersil | Rochester Electronics, LLC | Rochester Electronics, LLC | Renesas Electronics America Inc | Intersil |
| Product Status | Active | Active | Active | Obsolete | Obsolete |
| Amplifier Type | CMOS | CMOS | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - | - |
| Slew Rate | 30V/µs | 30V/µs | 9V/µs | 30V/µs | 30V/µs |
| Gain Bandwidth Product | 15 MHz | 15 MHz | 4.5 MHz | 15 MHz | 15 MHz |
| -3db Bandwidth | - | - | - | - | - |
| Current - Input Bias | 5 pA | 5 pA | - | 5 pA | 5 pA |
| Voltage - Input Offset | 2 mV | 8 mV | 2 mV | 2 mV | 2 mV |
| Current - Supply | 10mA | 10mA | 4mA | 10mA | 10mA |
| Current - Output / Channel | 45 mA | 45 mA | 40 mA | 45 mA | 45 mA |
| Voltage - Supply Span (Min) | 5 V | 5 V | 4 V | 5 V | 5 V |
| Voltage - Supply Span (Max) | 16 V | 16 V | 36 V | 16 V | 16 V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | TO-99-8 | TO-99-8 | TO-99-8 | 8-PDIP | 8-SOIC |
