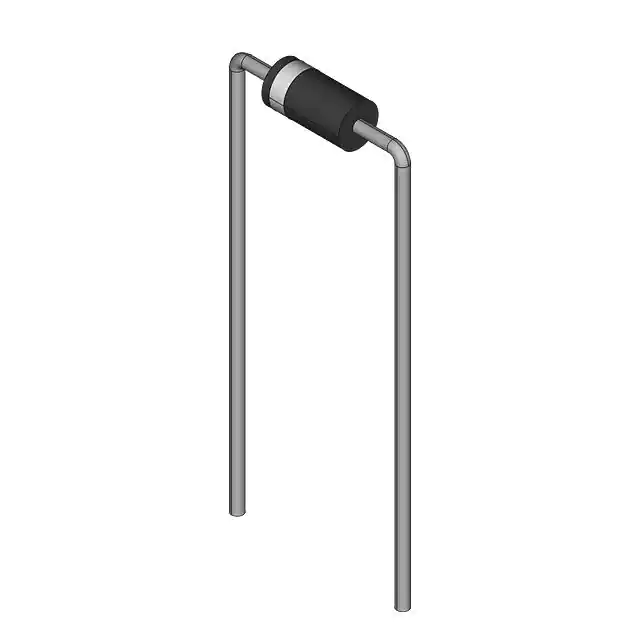

Fairchild Semiconductor-BZX85C36 - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	BZX85C36	BZX85C3V6	BZX85C56	BZX85C39	BZX85C16	BZX85C30	BZX85C33
Manufacturer	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	onsemi	onsemi	Fairchild Semiconductor	Fairchild Semiconductor
Product Status	Active	Active	Obsolete	Obsolete	Active	Active	Active
Voltage - Zener (Nom) (Vz)	36 V	3.6 V	56 V	39 V	16 V	30 V	33 V
Tolerance	±5%	±5%	±7%	±5%	±6%	±5%	±5%
Power - Max	1 W	1.3 W	1 W	1 W	1 W	1.3 W	1.3 W
Impedance (Max) (Zzt)	1000 Ohms	20 Ohms	120 Ohms	45 Ohms	15 Ohms	30 Ohms	35 Ohms
Current - Reverse Leakage @ Vr	500 nA @ 25 V	20 µA @ 1 V	500 nA @ 39 V	500 nA @ 27 V	500 nA @ 11 V	500 nA @ 22 V	500 nA @ 24 V
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA
Operating Temperature	-65°C ~ 200°C (TJ)	-	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial
Supplier Device Package	DO-204AL (DO-41)	DO-41G	DO-204AL (DO-41)	DO-41	DO-41	DO-41G	DO-41G

Fairchild Semiconductor BZX85C36
