Please send RFQ , we will respond immediately.

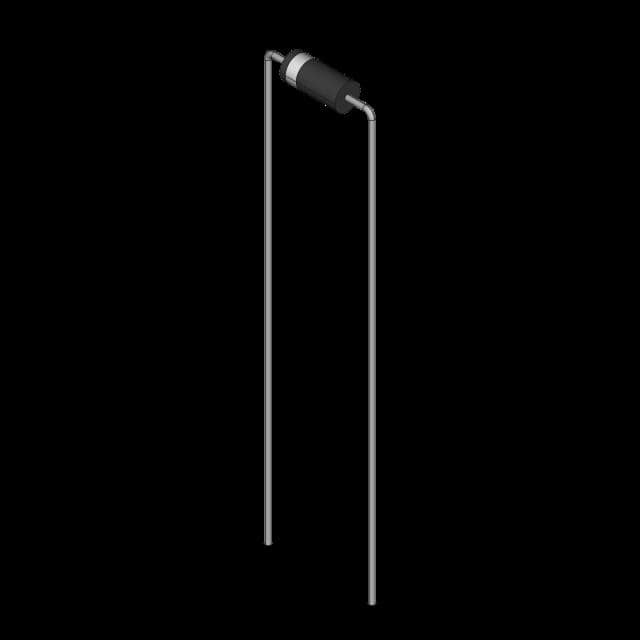

| Part Number | BZX79C24 | BZX79C27 | BZX79C2V4 | BZX79C20 | BZX79C22 |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Obsolete | Active | Active | Obsolete |
| Voltage - Zener (Nom) (Vz) | 24 V | 27 V | 2.4 V | 20 V | 22 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 70 Ohms | 80 Ohms | 100 Ohms | 55 Ohms | 55 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 16.8 V | 50 nA @ 18.9 V | 100 µA @ 1 V | 50 nA @ 14 V | 50 nA @ 15.4 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 100 mA | 1.5 V @ 100 mA | 1.5 V @ 100 mA | 1.5 V @ 100 mA | 1.5 V @ 100 mA |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C | -65°C ~ 200°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 | DO-35 | DO-35 (DO-204AH) |
