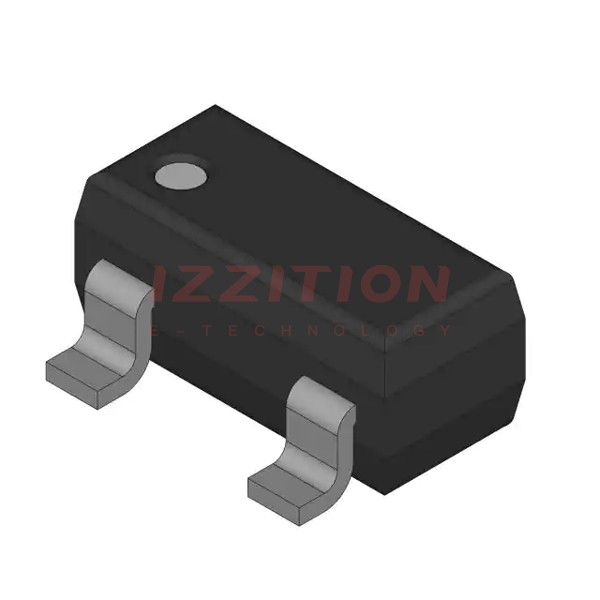

| Part Number | BSR15 | BSR16 | BSR13 | BSR14 |
|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Active | Active | Obsolete | Active |
| Transistor Type | PNP | PNP | NPN | NPN |
| Current - Collector (Ic) (Max) | 800 mA | 800 mA | 500 mA | 800 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V | 60 V | 30 V | 40 V |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 50mA, 500mA | 1.6V @ 50mA, 500mA | 1.6V @ 50mA, 500mA | 1V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 20nA (ICBO) | 10nA (ICBO) | 30nA (ICBO) | 10nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V | 100 @ 150mA, 10V | 100 @ 150mA, 10V | 100 @ 150mA, 10V |
| Power - Max | 350 mW | 350 mW | 350 mW | 350 mW |
| Frequency - Transition | 200MHz | 200MHz | 250MHz | 300MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 | SOT-23-3 | SOT-23-3 | SOT-23-3 |
