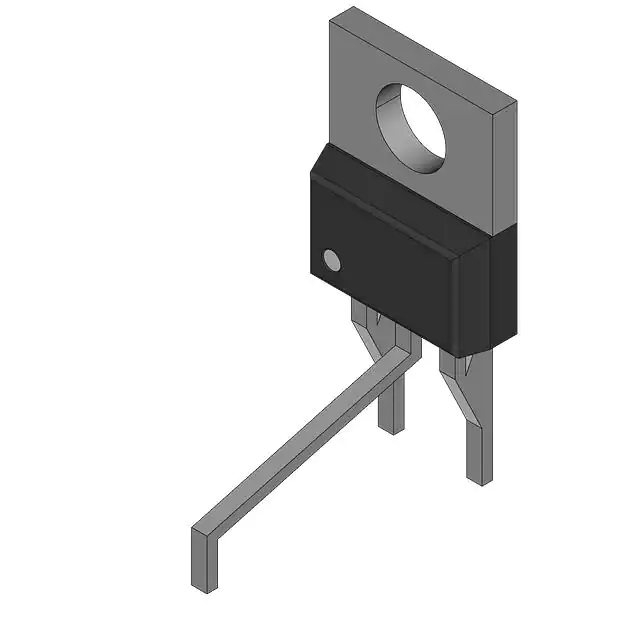

Fairchild Semiconductor-BD1396STU - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	BD1396STU	BD1356STU	BD1366STU	BD1376STU	BD1386STU	BD13916STU
Manufacturer	Fairchild Semiconductor	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Active	Obsolete	Obsolete	Obsolete	Obsolete	Active
Transistor Type	NPN	NPN	PNP	NPN	PNP	NPN
Current - Collector (Ic) (Max)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Voltage - Collector Emitter Breakdown (Max)	80 V	45 V	45 V	60 V	60 V	80 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 150mA, 2V	40 @ 150mA, 2V	40 @ 150mA, 2V	40 @ 150mA, 2V	40 @ 150mA, 2V	100 @ 150mA, 2V
Power - Max	1.25 W	1.25 W	1.25 W	1.25 W	1.25 W	1.25 W
Frequency - Transition	-	-	-	-	-	-
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-225AA, TO-126-3	TO-225AA, TO-126-3	TO-225AA, TO-126-3	TO-225AA, TO-126-3	TO-225AA, TO-126-3	TO-225AA, TO-126-3
Supplier Device Package	TO-126-3	TO-126-3	TO-126-3	TO-126-3	TO-126-3	TO-126-3

Transistor Type:	NPN
Current - Collector (Ic) (Max):	1.5 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	40 @ 150mA, 2V
Power - Max:	1.25 W
Frequency - Transition:	-
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-225AA, TO-126-3
Supplier Device Package:	TO-126-3

Fairchild Semiconductor BD1396STU
