Fairchild Semiconductor-BCX70G - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	BCX70G	BCX70H	BCX71G	BCX70K	BCX70J
Manufacturer	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Infineon Technologies	Fairchild Semiconductor
Product Status	Active	Active	Obsolete	Obsolete	Obsolete
Transistor Type	NPN	NPN	PNP	NPN	NPN
Current - Collector (Ic) (Max)	200 mA	200 mA	100 mA	200 mA	200 mA
Voltage - Collector Emitter Breakdown (Max)	45 V	45 V	45 V	45 V	45 V
Vce Saturation (Max) @ Ib, Ic	550mV @ 1.25mA, 50mA	550mV @ 1.25mA, 50mA	550mV @ 1.25mA, 50mA	550mV @ 1.25mA, 50mA	550mV @ 1.25mA, 50mA
Current - Collector Cutoff (Max)	20nA	20nA	20nA	20nA	20nA
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 2mA, 5V	180 @ 2mA, 5V	120 @ 2mA, 5V	380 @ 2mA, 5V	250 @ 2mA, 5V
Power - Max	350 mW	350 mW	350 mW	350 mW	350 mW
Frequency - Transition	125MHz	125MHz	-	125MHz	125MHz
Operating Temperature	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3	SOT-23-3	SOT-23-3	SOT-23-3	SOT-23-3

Transistor Type:	NPN
Current - Collector (Ic) (Max):	200 mA
Voltage - Collector Emitter Breakdown (Max):	45 V
Vce Saturation (Max) @ Ib, Ic:	550mV @ 1.25mA, 50mA
Current - Collector Cutoff (Max):	20nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	120 @ 2mA, 5V
Power - Max:	350 mW
Frequency - Transition:	125MHz
Operating Temperature:	-
Mounting Type:	Surface Mount
Package / Case:	TO-236-3, SC-59, SOT-23-3
Supplier Device Package:	SOT-23-3

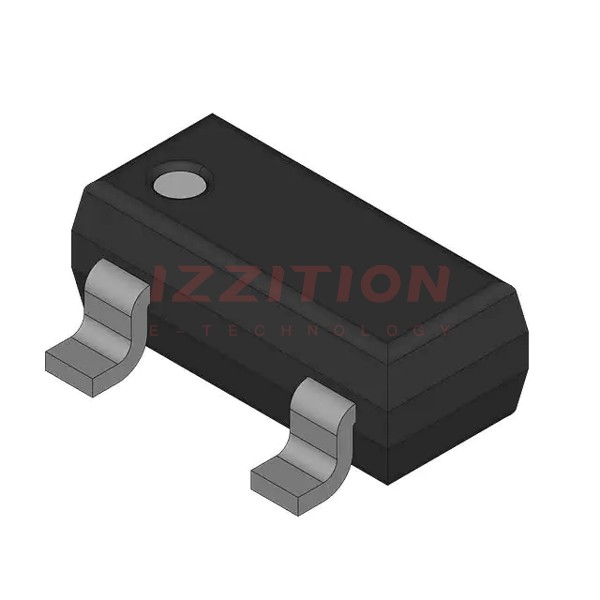

Fairchild Semiconductor BCX70G
