Fairchild Semiconductor-BC559CBU - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	BC559CBU	BC558CBU	BC559ABU	BC559BBU	BC559BU
Manufacturer	Fairchild Semiconductor	onsemi	onsemi	onsemi	onsemi
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Transistor Type	PNP	PNP	PNP	PNP	PNP
Current - Collector (Ic) (Max)	100 mA	100 mA	100 mA	100 mA	100 mA
Voltage - Collector Emitter Breakdown (Max)	30 V	30 V	30 V	30 V	30 V
Vce Saturation (Max) @ Ib, Ic	650mV @ 5mA, 100mA	650mV @ 5mA, 100mA	650mV @ 5mA, 100mA	650mV @ 5mA, 100mA	650mV @ 5mA, 100mA
Current - Collector Cutoff (Max)	15nA (ICBO)	15nA (ICBO)	15nA (ICBO)	15nA (ICBO)	15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	420 @ 2mA, 5V	420 @ 2mA, 5V	110 @ 2mA, 5V	200 @ 2mA, 5V	110 @ 2mA, 5V
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW
Frequency - Transition	150MHz	150MHz	150MHz	150MHz	150MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA)	TO-226-3, TO-92-3 (TO-226AA)	TO-226-3, TO-92-3 (TO-226AA)	TO-226-3, TO-92-3 (TO-226AA)	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package	TO-92-3	TO-92-3	TO-92-3	TO-92-3	TO-92-3

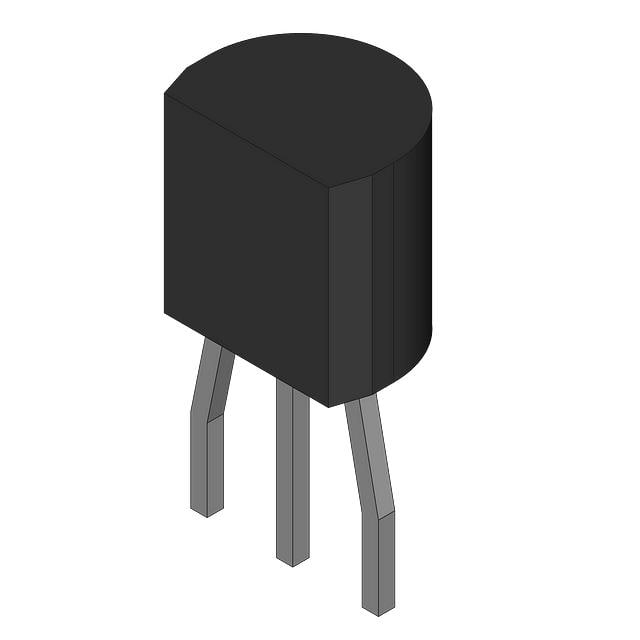

Fairchild Semiconductor BC559CBU

Transistor Type:	PNP
Current - Collector (Ic) (Max):	100 mA
Voltage - Collector Emitter Breakdown (Max):	30 V
Vce Saturation (Max) @ Ib, Ic:	650mV @ 5mA, 100mA
Current - Collector Cutoff (Max):	15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	420 @ 2mA, 5V
Power - Max:	500 mW
Frequency - Transition:	150MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package:	TO-92-3
