Fairchild Semiconductor-BAS70SV - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	2 Independent
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	70 V
Current - Average Rectified (Io) (per Diode):	70mA
Voltage - Forward (Vf) (Max) @ If:	1 V @ 15 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	8 ns
Current - Reverse Leakage @ Vr:	2.5 µA @ 70 V
Operating Temperature - Junction:	-55°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	SOT-563, SOT-666
Supplier Device Package:	SOT-563F

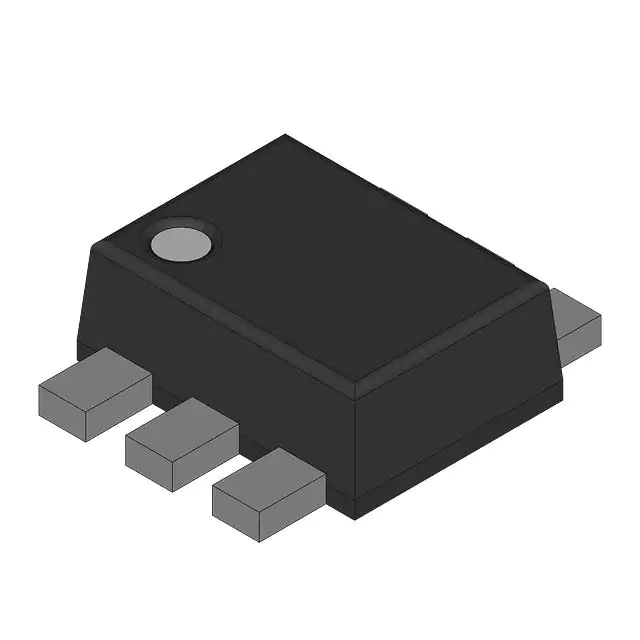

Fairchild Semiconductor BAS70SV
