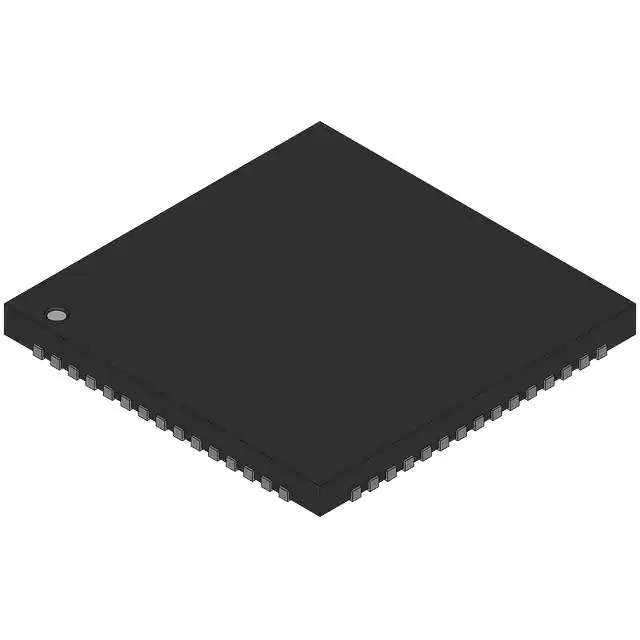

| Part Number | ADC14DS105CISQE/NOPB | ADC14DC105CISQE/NOPB | ADC14DS105AISQE/NOPB | ADC14DS105CISQ/NOPB |
|---|---|---|---|---|
| Manufacturer | National Semiconductor | National Semiconductor | National Semiconductor | Texas Instruments |
| Product Status | Active | Active | Active | Discontinued at Digi-Key |
| Number of Bits | 14 | 14 | 14 | 14 |
| Sampling Rate (Per Second) | 105M | 105M | 105M | 105M |
| Number of Inputs | 2 | 2 | 2 | 2 |
| Input Type | Differential | Differential | Differential | Differential |
| Data Interface | LVDS - Serial | Parallel | LVDS - Serial | LVDS - Serial |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:2 | 1:1 | 1:1 |
| Number of A/D Converters | 2 | 2 | 2 | 2 |
| Architecture | Pipelined | Pipelined | Pipelined | Pipelined |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Features | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 60-WFQFN Exposed Pad | 60-WFQFN Exposed Pad | 60-WFQFN Exposed Pad | 60-WFQFN Exposed Pad |
| Supplier Device Package | 60-WQFN (9x9) | 60-WQFN (9x9) | 60-WQFN (9x9) | 60-WQFN (9x9) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
