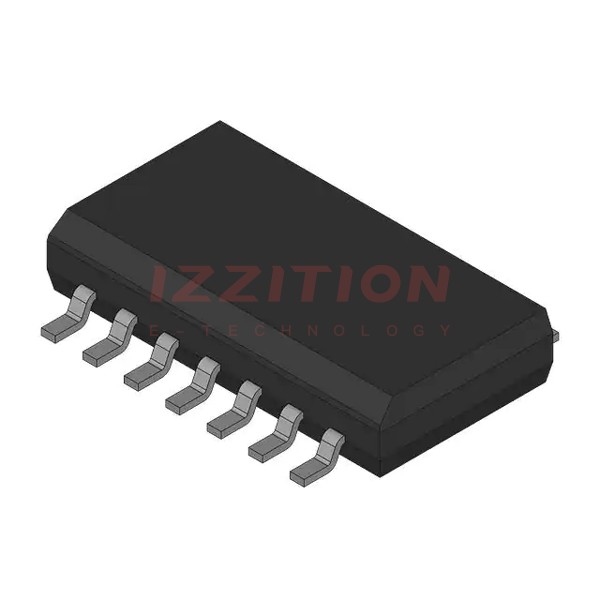

| Part Number | 74VHCT04SJX | 74VHCU04SJX | 74VHCT04ASJX | 74VHCT04SJ |
|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Obsolete | Obsolete | Active |
| Logic Type | Inverter | Inverter | Inverter | Inverter |
| Number of Circuits | 6 | 6 | 6 | 6 |
| Number of Inputs | 1 | 1 | 1 | 1 |
| Features | - | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 2V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA | 2 µA |
| Current - Output High, Low | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Logic Level - Low | 0.8V | 0.3V | 0.8V | 0.8V |
| Logic Level - High | 2V | 1.7V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 7.7ns @ 5V, 50pF | 7ns @ 5V, 50pF | 7.7ns @ 5V, 50pF | 7.7ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-SOP | 14-SOP | 14-SOP | 14-SOP |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) |
