Please send RFQ , we will respond immediately.

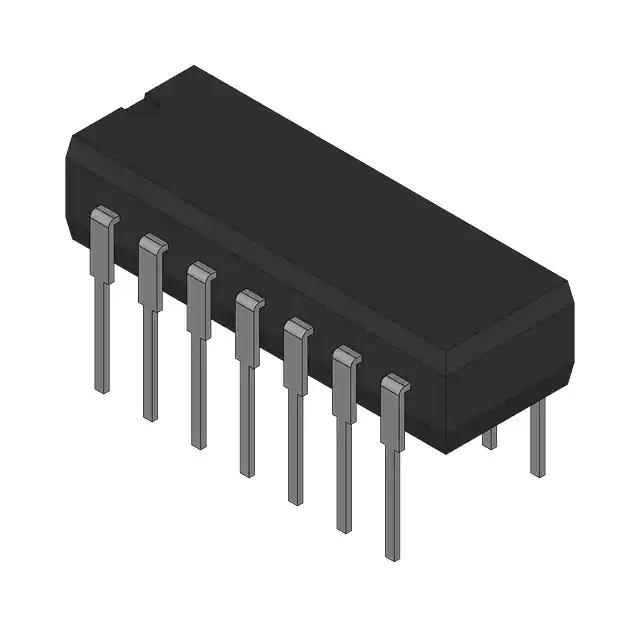

| Part Number | 74VHCT04AN | 74VHCT14AN | 74VHCT08AN | 74VHCT00AN | 74VHCT04AM |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | Inverter | Inverter | AND Gate | NAND Gate | Inverter |
| Number of Circuits | 6 | 6 | 4 | 4 | 6 |
| Number of Inputs | 1 | 1 | 2 | 2 | 1 |
| Features | - | Schmitt Trigger | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA |
| Current - Output High, Low | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Logic Level - Low | 0.8V | 0.5V ~ 0.6V | 0.8V | 0.8V | 0.8V |
| Logic Level - High | 2V | 1.9V ~ 2.1V | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 7.7ns @ 5V, 50pF | 9.6ns @ 5V, 50pF | 7.9ns @ 5V, 50pF | 7.9ns @ 5V, 50pF | 7.7ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Supplier Device Package | 14-DIP | 14-DIP | 14-DIP | 14-DIP | 14-SOIC |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) |
