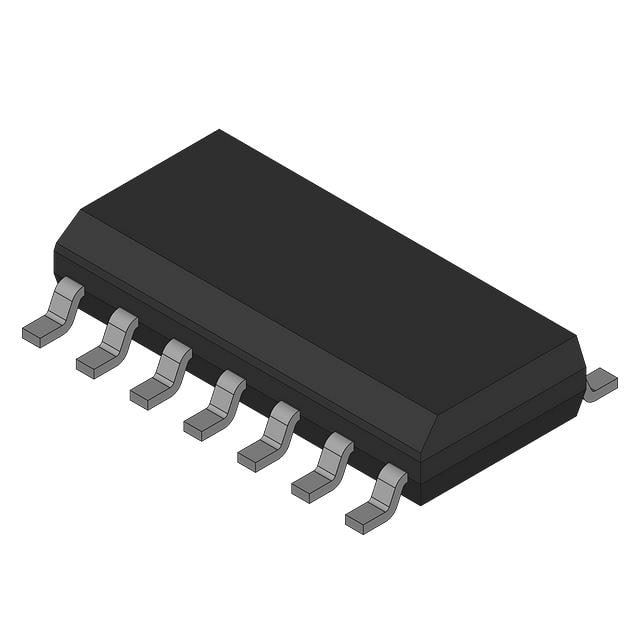

| Part Number | 74VHC04SJX | 74VHC14SJX | 74VHC08SJX | 74VHC00SJX | 74VHC02SJX | 74VHC04SJ |
|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Logic Type | Inverter | Inverter | AND Gate | NAND Gate | NOR Gate | Inverter |
| Number of Circuits | 6 | 6 | 4 | 4 | 4 | 6 |
| Number of Inputs | 1 | 1 | 2 | 2 | 2 | 1 |
| Features | - | Schmitt Trigger | - | - | - | - |
| Voltage - Supply | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA |
| Current - Output High, Low | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Logic Level - Low | 0.5V | 0.9V ~ 1.65V | 0.5V | 0.5V | 0.5V | 0.5V |
| Logic Level - High | 1.5V | 2.2V ~ 3.85V | 1.5V | 1.5V | 1.5V | 1.5V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF | 10.6ns @ 5V, 50pF | 7.9ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-SOP | 14-SOP | 14-SOP | 14-SOP | 14-SOP | 14-SOP |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) |
