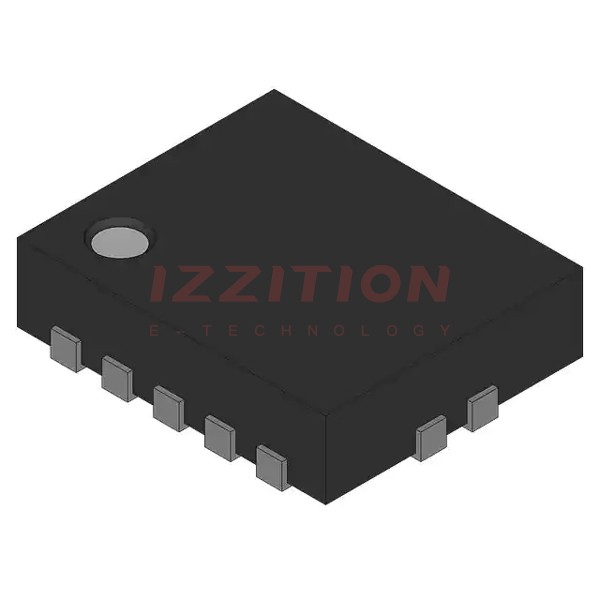

| Part Number | 74VCX32BQX | 74VCX38BQX | 74VCX132BQX |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Logic Type | OR Gate | NAND Gate | NAND Gate |
| Number of Circuits | 4 | 4 | 4 |
| Number of Inputs | 2 | 2 | 2 |
| Features | - | Open Drain | Schmitt Trigger |
| Voltage - Supply | 1.2V ~ 3.6V | 1.2V ~ 3.6V | 1.4V ~ 3.6V |
| Current - Quiescent (Max) | 20 µA | 20 µA | 20 µA |
| Current - Output High, Low | 24mA, 24mA | -, 24mA | 24mA, 24mA |
| Logic Level - Low | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.2V ~ 0.8V |
| Logic Level - High | 1.6V ~ 2V | 1.6V ~ 2V | 1.2V ~ 2.2V |
| Max Propagation Delay @ V, Max CL | 2.8ns @ 3.3V, 30pF | 2.8ns @ 3.3V, 30pF | 3.3ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-DQFN (3x2.5) | 14-DQFN (3x2.5) | 14-DQFN (3x2.5) |
| Package / Case | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad |
